Hyundai Azera: To defog inside windshield
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Owners Manual / Features of your vehicle / Windshield defrosting and defogging / To defog inside windshield

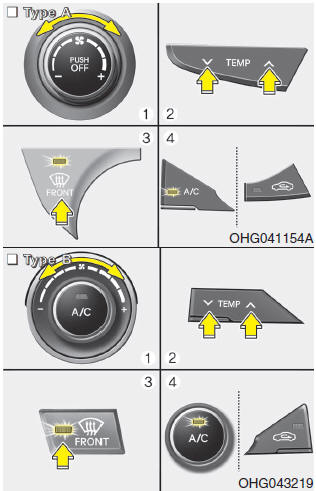

1. Set the fan speed to the desired position.
2. Select desired temperature.
3. Press the defroster button (
).
4. The air conditioning will be turned on according to the detected ambient temperature
and outside (fresh) air position will be selected automatically.
If the air conditioning and outside (fresh) air position are not selected automatically,
adjust the corresponding button manually. If the
position is selected, lower
fan speed is adjusted to a higher fan speed.
