| Component Location |

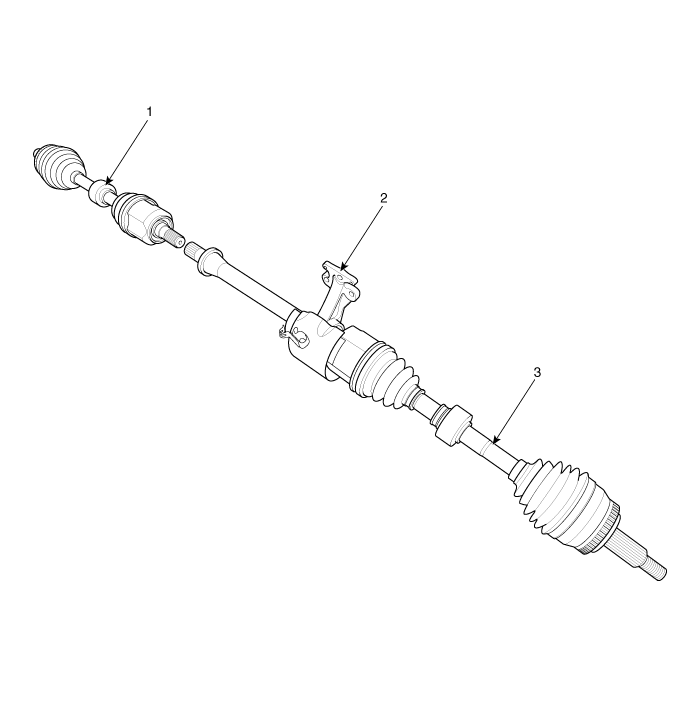

| 1. Driveshaft(LH) 2. Inner shaft bearing bracket assembly | 3. Driveshaft(RH) |
| Components |

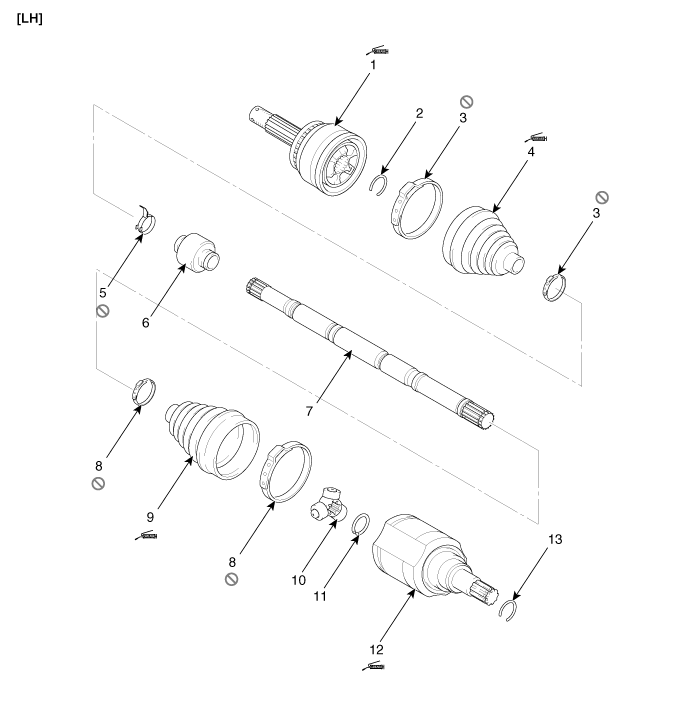

| 1. BJ Assembly 2. Clip 3. BJ Boot Band 4. BJ Boot | 5. Dynamic Damper Band 6. Dynamic Damper 7. Shaft 8. TJ Boot Band | 9. TJ Boot 10. Spider Assembly 11. Clip 12. TJ Case | 13.Clip |

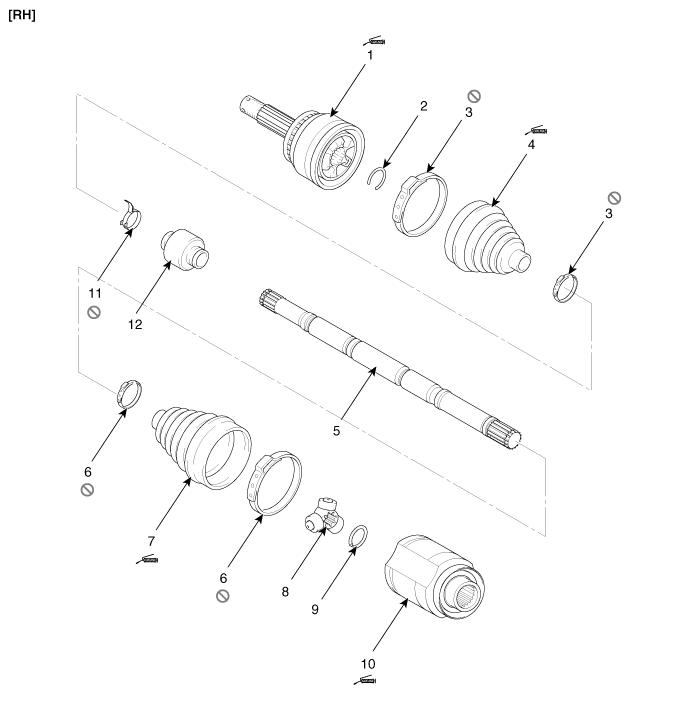

| 1. BJ Assembly 2. Clip 3. BJ Boot Band 4. BJ Boot | 5. Shaft 6. TJ Boot Band 7. TJ Boot 8. Spider Assembly | 9. Clip 10. TJ Case 11. Dynamic Damper Band 12. Dynamic Damper |
Front Driveshaft Repair procedures
Replacement
1.
Loosen the wheel lug nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.
Remove the front wheel and tire (A) from front hub.
Tightening torque:
88. ...
