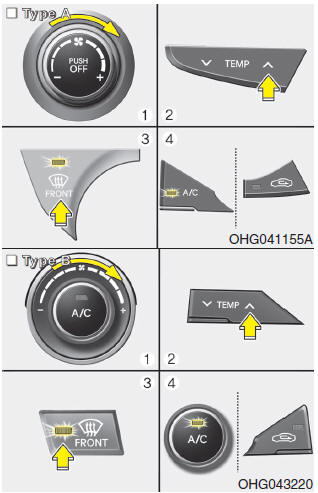

1. Set the fan speed to the highest (extreme right) position.
2. Set the temperature to the extreme hot (HIGH) position.
3. Press the defroster button ().
4. The air conditioning will be turned on according to the detected ambient temperature
and outside (fresh) air position will be selected automatically.
If the position is selected, lower
fan speed is adjusted to a higher fan speed.
