Hyundai Azera: Room lamp

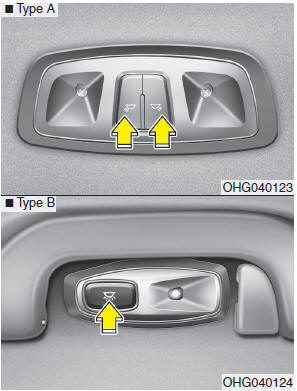

Press the button to turn the light on or off.
CAUTION
Do not leave the lamp switches on for an extended period of time when the vehicle is not running.
Map lamp
,
Push the switch (1) to turn the map lamp on or off. This light produces a spot
beam for convenient use as a map lamp at night or as a personal lamp for the driver
and the fro ...
Trunk room lamp
The trunk room lamp comes on for 20 minutes when the trunk is opened. ...
