Hyundai Azera: Removable towing hook (front, if equipped)
Fifth generation HG (2011–2024) / Hyundai Azera 2011-2024 Owners Manual / What to do in an emergency / Towing / Removable towing hook (front, if equipped)

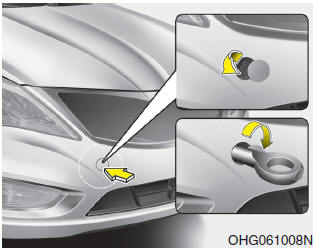

1. Open the trunk, and remove the towing hook from the tool case.
2. Remove the hole cover pressing the lower part of the cover on the front bumper.
3. Install the towing hook by turning it clockwise into the hole until it is fully
secured.
4. Remove the towing hook and install the cover after use.
