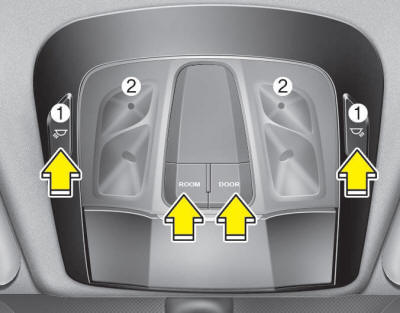

Push the switch (1) to turn the map lamp on or off. This light produces a spot beam for convenient use as a map lamp at night or as a personal lamp for the driver and the front passenger.
When the DOOR switch is pushed:
- The map lamp and room lamp comes on when a door is opened and closed. The lamps
go out after approximately 30 seconds.
- The map lamp and room lamp comes on for approximately 30 seconds when doors are
unlocked with a smart key as long as the doors are not opened.
- The map lamp and room lamp will stay on for approximately 20 minutes if a door
is opened with the ignition switch in the ACC or OFF position.
- The map lamp and room lamp will stay on continuously if the door is opened with
the ignition switch in the ON position.
- The map lamp and room lamp will go out immediately if the ignition switch is changed
to the ON position or all doors are locked.
- Push the switch once more to turn off the DOOR switch.
• ROOM
- The map lamp and room lamp stay on at all times.
- Push the switch once more to turn off the light.
Mood lamp (2)
- The mood lamp turns on when the ENGINE START/STOP button is in the ACC or above
position.
- The mood lamp will turn off when the ENGINE START/STOP button is in the OFF position.
