| Adjustment |
| 1. |

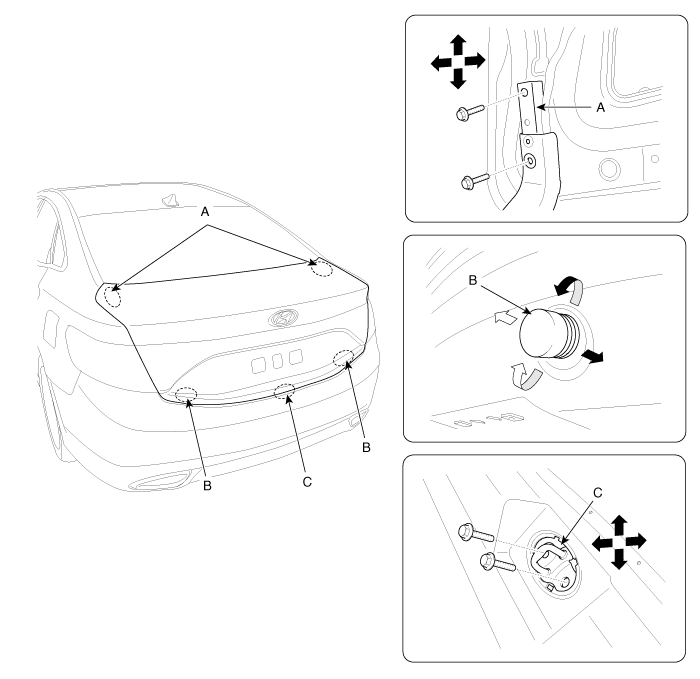

After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up or down, or right or left. |
| 2. |
Adjust the trunk lid height by turning the trunk lid overslam bumpers (B). |
| 3. |
After loosening the trunk lid striker (C) mounting bolts,
adjust the trunk lid striker by moving it up or down, or right or left.
|
