Hyundai Azera: Oil Level Gauge & Pipe Components and Components Location - Lubrication System - Engine Mechanical System - Hyundai Azera 2011-2025 Service ManualHyundai Azera: Oil Level Gauge & Pipe Components and Components Location

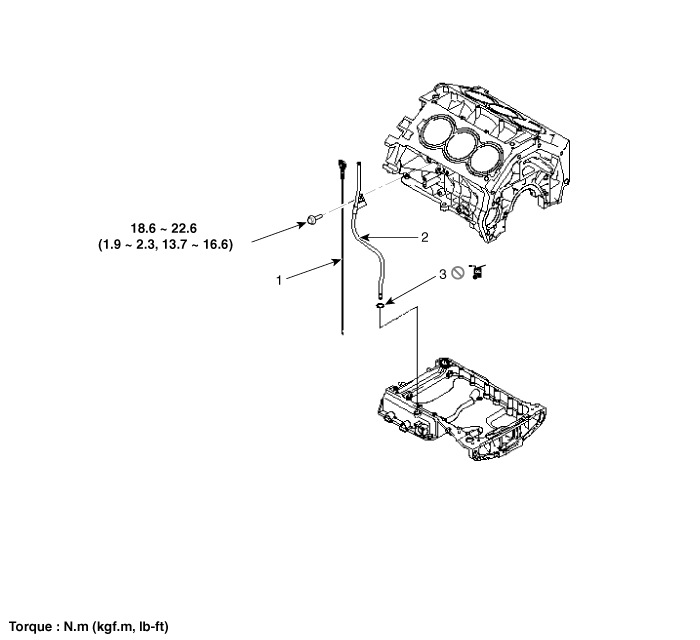

Components

1. Oil level gauge
2. Oil level gauge pipe
3. O-ring

Oil Pressure Switch Repair procedures
Removal and Installation 1. Remove the water pipe. (Refer to Cooling System - "Water Pipe") 2. Remove the oil pressure switch (A). Tightening torque: 34.3 ~ 44.1N.m (3.5 ~ 4.5kgf.m, 25.3 ...

Oil Level Gauge & Pipe Repair procedures
Removal and Installation 1. Remove the oil level gauge (A). Tightening torque: 18.6 ~ 22.6N.m (1.9 ~ 2.3kgf.m, 13.7 ~ 16.6lb-ft)     When installing, apply engine oil to t ...
