Hyundai Azera: Manifold Absolute Pressure Sensor (MAPS) Schematic Diagrams
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Engine Control/Fuel System / Engine Control System / Manifold Absolute Pressure Sensor (MAPS) Schematic Diagrams
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Engine Control/Fuel System / Engine Control System / Manifold Absolute Pressure Sensor (MAPS) Schematic Diagrams

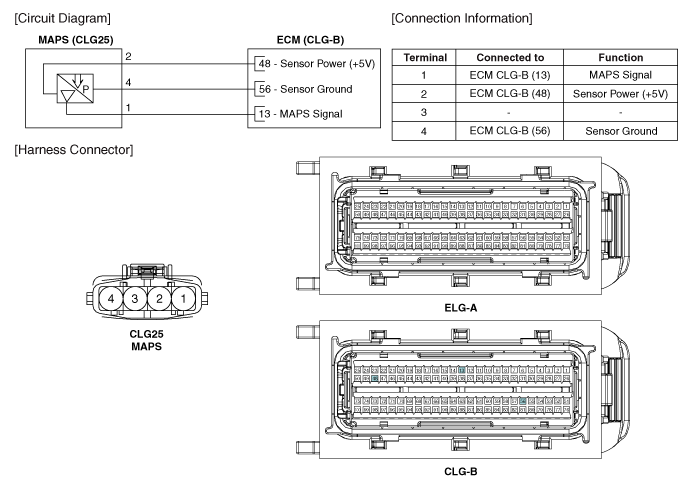

| Circuit Diagram |
Manifold Absolute Pressure Sensor (MAPS) Specifications
Specification
Pressure [kPa (kgf/cm?, psi)]Output Voltage (V)20.0 (0.20, 2.90)0.7946.66 (0.47, 6.77)1.84101.32 (1.03, 14.7)4.0
...
Manifold Absolute Pressure Sensor (MAPS) Repair procedures
Inspection
1.
Connect the GDS on the Data Link Connector (DLC).
2.
Measure the output voltage of the MAPS at idle and IG ON.
ConditionOutput Voltage (V)IG ONApprox. 4.44VIdleApprox. 0.75V
...
