Hyundai Azera: General Information - Identification Numbers - General Information - Hyundai Azera 2011-2024 Service ManualHyundai Azera: General Information

Fifth generation HG (2011–2024) / Hyundai Azera 2011-2024 Service Manual / General Information / Identification Numbers / General Information

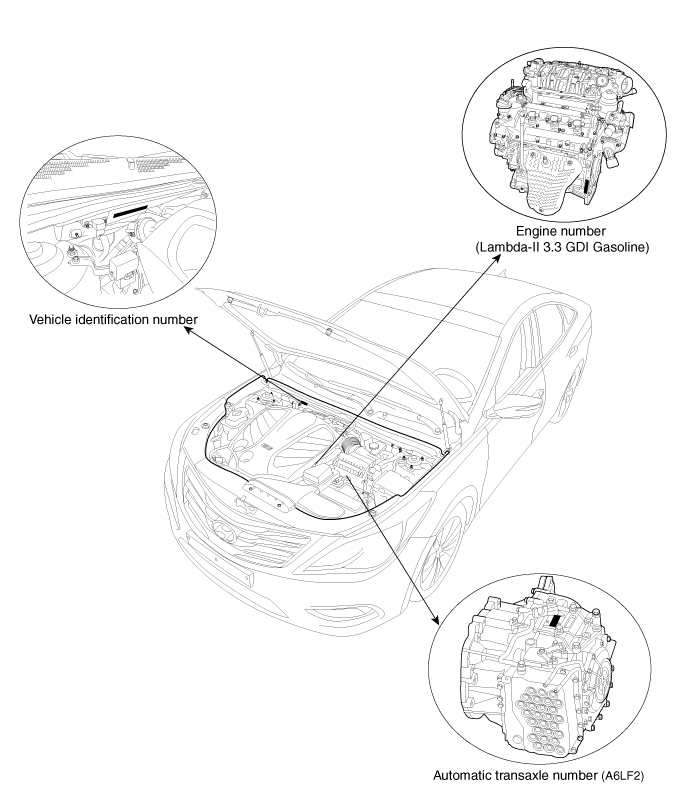

Identification Number

Identification Number Description
Vehicle Identification Number

1.
World Manufacturer Identifier (WMI)
A.
KMF : Commercial vehicle (Van)
B.
KMH : Passenger vehicle or MPV(Multipurpose Passenger Vehicle)/SUV(Sports Utility Vehicle)/RV(Recreational Vehicle)
C.
KMJ : Van
D.
KM8 : MPV/SUV/RV (For U.S.A, Canada, Mexico only)
2.
Vehicle line
A.
F : AZERA
3.
Model & Series
A.
F : Low grade (L)
B.
G : Middle-Low grade (GL)
C.
H : Middle grade (GLS, JSL, TAX)
D.
J : Middle-High grade (HGS)
E.
K : High grade (TOP)
4.
Body/Cabin type, Gross Vehicle Weight Rating
KMF (Commercial vehicle / Van)
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China
- X : Standard Cabin / Semi-Bonnet
- Y : Double Cabin / Bonnet
- Z : Super Cabin / Box
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China
- 3 : Standard Cabin Class-E 4x2 / Semi-Bonnet Class-E 4x2
- 4 : Standard Cabin Class-E 4x4 / Semi-Bonnet Class-E 4x4
- 5 : Standard Cabin Class-F 4x2 / Semi-Bonnet Class-F 4x2
- 6 : Standard Cabin Class-F 4x4 / Semi-Bonnet Class-F 4x4
- 7 : Double Cabin Class-E 4x2 / Bonnet Class-E 4x2
- 8 : Double Cabin Class-E 4x4 / Bonnet Class-E 4x4
- 9 : Double Cabin Class-F 4x2 / Bonnet Class-F 4x2
- 0 : Double Cabin Class-F 4x4 / Bonnet Class-F 4x4
- A : Super Cabin Class-E 4x2 / Box Class-E 4x2
- B : Super Cabin Class-E 4x4 / Box Class-E 4x4
- C : Super Cabin Class-F 4x2 / Box Class-F 4x2
- D : Super Cabin Class-F 4x4 / Box Class-F 4x4
KMH
- 1 : Limousine
- 2 : Sedan - 2 door
- 3 : Sedan - 3 door
- 4 : Sedan - 4 door
- 5 : Sedan - 5 door
- 6 : Coupe
- 7 : Convertible
- 8 : Wagon
- 9 : Commercial Van
- 0 : Pick-Up
KMJ
- 1 : Box
- 2 : Bonnet
- 3 : Semi-Bonnet
KM8
- 1 : Wagon 4x2 Class-A
- 2 : Wagon 4x2 Class-B
- 3 : Wagon 4x2 Class-C
- 4 : Wagon 4x2 Class-D
- 5 : Wagon 4x2 Class-E
- 6 : Wagon 4x2 Class-F
- 7 : Wagon 4x2 Class-G
- A : Wagon 4x4 Class-A
- B : Wagon 4x4 Class-B
- C : Wagon 4x4 Class-C
- D : Wagon 4x4 Class-D
- E : Wagon 4x4 Class-E
- F : Wagon 4x4 Class-F
- G : Wagon 4x4 Class-G
5.
Restraint system, Brake system
KMH, KM8
Except U.S.A, Canada, Mexico
- 0 : Both side - None
- 1 : Both side - Active belt
- 2 : Both side - Passive belt
For U.S.A, Canada, Mexico
Code
Seat belt
Front air bag
Knee air bag
Side air bag
Curtain air bag
Driver's
Passenger's
Driver's
Passenger's
1st row
2nd row
3rd row
1st row
2nd row
3rd row
A
o
o
o
x
x
o
x
x
o
o
x
B
o
o
o
x
x
x
x
x
x
x
x
C
o
o
o
x
x
o
x
x
o
o
o
D
o
o
o
x
x
o
o
x
o
o
x
E
o
o
x
x
x
x
x
x
x
x
x
F
o
o
o
x
x
o
x
x
x
x
x
J
o
o
o
o
x
o
o
x
o
o
x
L
o
o
o
o
x
o
x
x
o
o
x
N
o
x
x
x
x
x
x
x
x
x
x

KMJ
Except U.S.A, Canada, Mexico
- 7 : Hydraulic brake system
- 8 : Pneumatic brake system
- 9 : Mixed brake system
For U.S.A, Canada, Mexico
- X : Hydraulic brake system
- Y : Pneumatic brake system
- Z : Mixed brake system
KMF
Except U.S.A, Canada, Mexico
- 7 : Hydraulic brake system
- 8 : Pneumatic brake system
- 9 : Mixed brake system
For U.S.A, Canada, Mexico
Code
Restraint system
Brake system
Seat belt
Front air bag
Knee air bag
Side air bag
Curtain air bag
Hydraulic
Pneumatic
Mixed
Driver's
Passenger's
Driver's
Passenger's
1st row
2nd row
3rd row
1st row
2nd row
3rd row
X
o
x
x
x
x
x
x
x
x
x
x
o
-
-
V
o
o
x
x
x
x
x
x
x
x
x
o
-
-
W
o
o
o
x
x
x
x
x
x
x
x
o
-
-

6.
Engine type
A.
G : Gasoline engine 3.3
7.
Check digit or Driver’s side & Transmission
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- A : LHD & MT
- B : LHD & AT
- C : LHD & MT+Transfer
- D : LHD & AT+Transfer
- E : LHD & CVT
- F : LHD & Decelerator
- G : LHD & DCT
- L : RHD & MT
- M : RHD & AT
- N : RHD & MT+Transfer
- S : RHD & AT+Transfer
- T : RHD & CVT
- U : RHD & Decelerator
- V : RHD & DCT
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- Check digit : 0 ~ 9, x
8.
Model year
A.
B : 2011, C : 2012, D : 2013, E : 2014 ...
9.
Plant of production
A.
A : Asan (Korea)
B.
B : Beijing (China)
C.
C : Jeonju (Korea)
D.
H : Alabama (U.S.A)
E.
M : Chennai (India)
F.
U : Ulsan (Korea)
G.
Z : Izmit (Turkey)
H.
J : Ostrava (Czech)
10.
Vehicle production sequence number
A.
000001 ~ 999999
Engine Number

1.
Engine fuel
- G : Gasoline
2.
Engine range
- 6 : 4 cycle 6 cylinder
3.
Engine development order and capacity
- D : Lambda engine
4.
Engine Capacity
- H : 3342cc
5.
Model year
- B : 2011, C : 2012, D : 2013, E : 2014...
6.
Plant of production
- A : Asan (Korea)
- B : Beijing (China)
- H : Hwasung (Korea)
- K : Montgomery (U.S.A)
- M : Chennai (India)
- P : Poseung (Korea)
- S : Sohari (Korea)
- T : Izmit (Turkey)
- U : Ulsan (Korea)
- W : Shandong (China)
- Z : Zilina (Slovakia)
- 1 : Yancheng (China)
7.
Engine production sequence number
- 000001 ~ 999999
Transaxle Number
Automatic

1.
Model
- BA : A6LF2
2.
Model year
- B : 2011, C : 2012, D : 2013, E : 2014...
3.
Final gear ratio
- Q : 3.041
4.
Detailed classification
- D : Lambda-II 3.3 GDI
5.
Spare
6.
Transaxle production sequence number
- 000001~999999
Paint Code
Code
Color
AA
Black diamond
WHC
White crystal
Y5
Sleek silver
FHM
Hyper metalic
YDG
Dark gray
VR5
Black berry
V5G
Bronze gray
UEB
Blue black
