Hyundai Azera: Intake Manifold Components and Components Location

Surge Tank Repair procedures

Removal and Installation 1. Drain the coolant. (Refer to Cooling System - "Coolant") 2. Remove the air cleaner assembly. (Refer to Intake And Exhaust System - "Air Cleaner") 3. Disconn ...

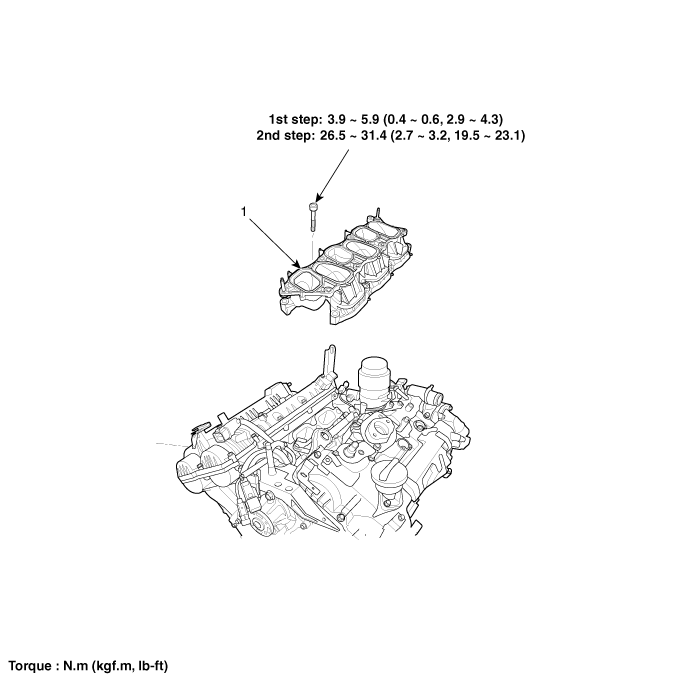

Intake Manifold Repair procedures

Removal and Installation 1. Remove the surge tank. (Refer to Intake And Exhaust System - "Surge Tank") 2. Remove the low pressure fuel line. (Refer to Fuel System - "Fuel Line") 3. Rem ...

See also:

Specifications
Specification Engine & T/MJoint typeMax. permissible angleInnerOuterOuterInnerRAMDA 3.0 MPI  A/TBJ#104PTJ#10045°21°RAMDA 3.3 GDI  A/TBJ#104PTJ#10045°21° Tightening Torque It ...

Manifold Absolute Pressure Sensor (MAPS) Specifications
Specification Pressure [kPa (kgf/cm?, psi)]Output Voltage (V)20.0 (0.20, 2.90)0.7946.66 (0.47, 6.77)1.84101.32 (1.03, 14.7)4.0 ...

Torque Converter Control Solenoid Valve (T/CON_VFS) Specifications
Specifications Direct control VFS[T/CON] ? Control type : Normal low type Control Pressure [kpa (kgf/cm?, psi)] 9.81~ 500.14 (0.1~ 5.1, 1.42 ~ 72.54)Current value(mA)50 ~ 850 Internal res ...
