Hyundai Azera: Ignition Coil Components and Components Location
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Engine Electrical System / Ignition System / Ignition Coil Components and Components Location
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Engine Electrical System / Ignition System / Ignition Coil Components and Components Location

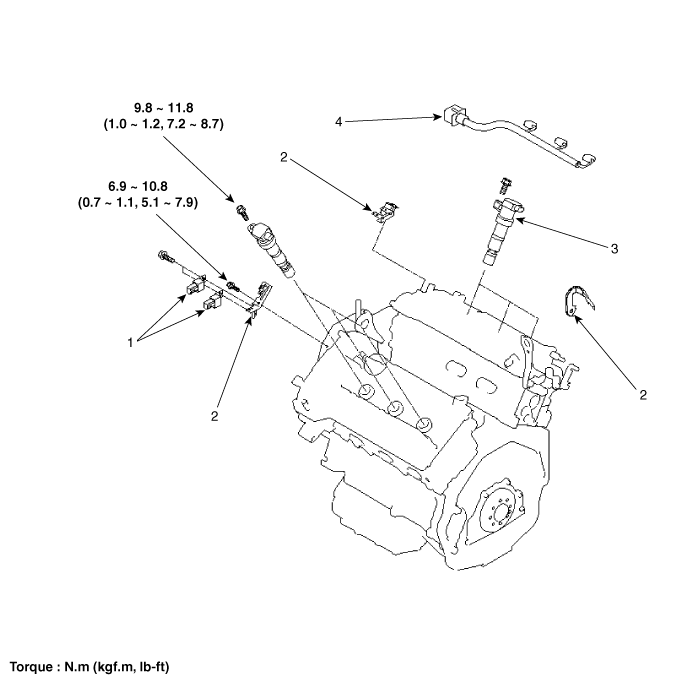

| Components |
| 1. Condensor 2. Bracket | 3. Ignition coil 4. Ignition coil harness |
Repair procedures
On-vehicle Inspection
Spark Test
1.
Remove the ignition coils.
(Refer to Ignition System - "Ignition Coil")
2.
Using a spark plug socket, remove the spark plug.
3.
Install the spark p ...
Ignition Coil Repair procedures
Removal and Installation
[LH]
1.
Disconnect the battery nagative terminal.
2.
Remove the engine cover.
3.
Disconnect the LH ignition coil connectors (A) and then remove the LH ignition ...
