| On-vehicle Inspection |

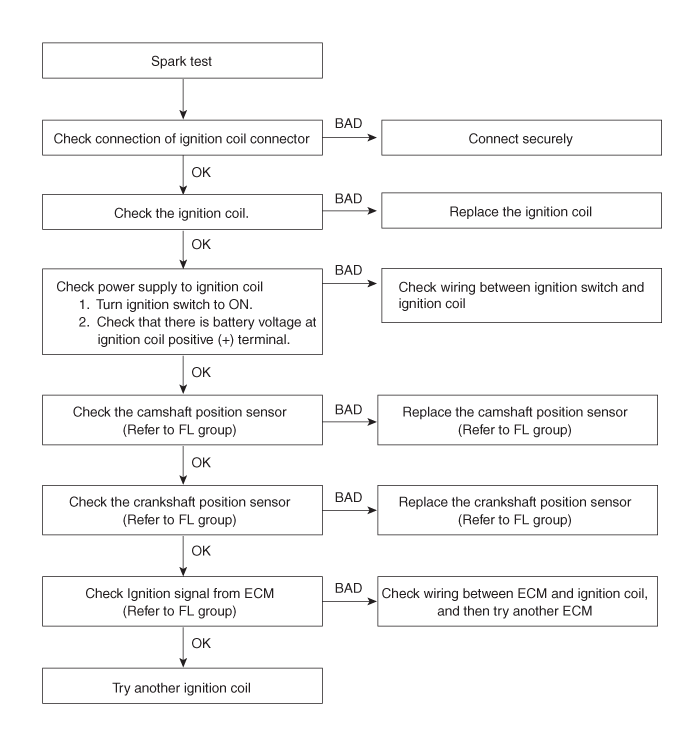

| Spark Test |
| 1. |
Remove the ignition coils.
(Refer to Ignition System - "Ignition Coil") |
| 2. |
Using a spark plug socket, remove the spark plug. |
| 3. |
Install the spark plug to the ignition coil. |
| 4. |
Ground the spark plug to the engine.
|
| 5. |
Check if spark occurs while engine is being cranked.
|
| 6. |
Inspect all the spark plugs. |
| 7. |
Using a spark plug socket, install the spark plug. |
| 8. |
Install the ignition coil. |
| 9. |
Reconnect the ignition coil connector. |
Description and Operation
Description
Ignition timing is controlled by the electronic control
ignition timing system. The standard reference ignition timing data for
the engine operating conditions are preprogrammed in ...
Ignition Coil Components and Components Location
Components
1. Condensor2. Bracket3. Ignition coil4. Ignition coil harness
...
