Hyundai Azera: Spark Plug Components and Components Location - Ignition System - Engine Electrical System - Hyundai Azera 2011-2025 Service ManualHyundai Azera: Spark Plug Components and Components Location

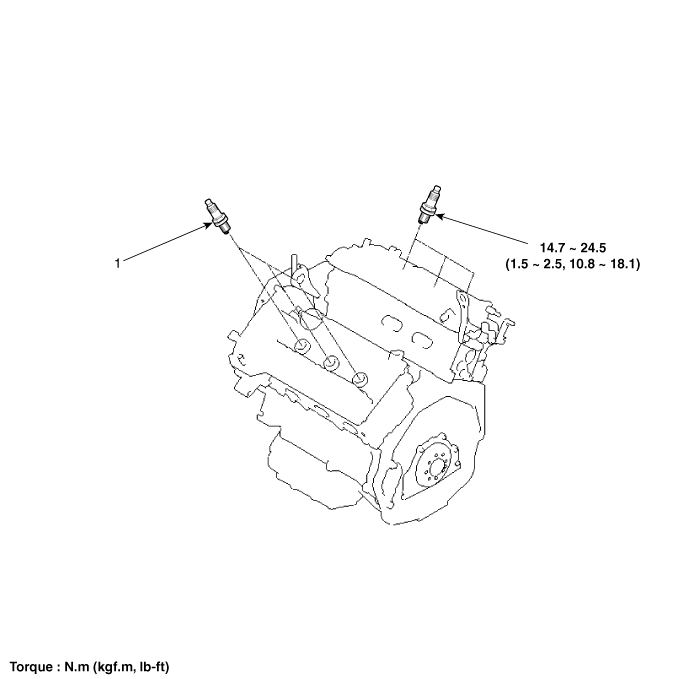

Components

1. Spark plug

Ignition Coil Repair procedures
Removal and Installation [LH] 1. Disconnect the battery nagative terminal. 2. Remove the engine cover. 3. Disconnect the LH ignition coil connectors (A) and then remove the LH ignition ...

Spark Plug Repair procedures
Removal and Installation 1. Remove the ignition coils. (Refer to Ignition System - "Ignition Coil") 2. Using a spark plug socket, remove the spark plug. Tightening torque : 14.7 ~ 24.5N. ...
