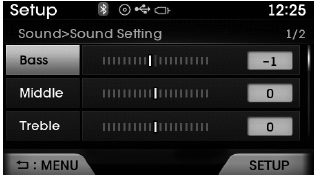

Sound Settings
Press the key
Select [Sound]
Select [Sound Setting]
Use ,
keys to adjust the Bass/Middle/Treble
and Fader/ Balance settings.
After selecting the Bass / Middle / Treble, use
,
keys to adjust the setting.

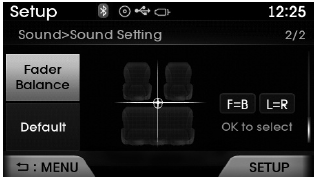

After selecting the Fader / Balance, use
,
keys and
,
keys to move the cursor on the
control screen to the desired position.
Select the button to reset.

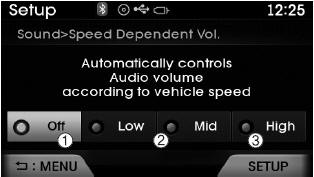

SDVC (Speed Dependent Volume Control)
Press the key
Select [Sound]
Select [Speed Dependent Vol.]
The volume level is controlled automatically according to the vehicle speed.
Use ,
keys to select from Off/Low/Mid/High.

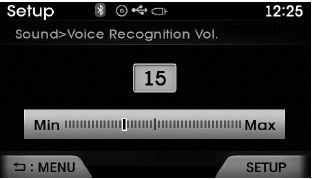

Voice Recognition Setting
Press the key
Select [Sound]
Select[Voice Recognition Vol.]
Use ,
keys to adjust the Voice Recognition
volume.

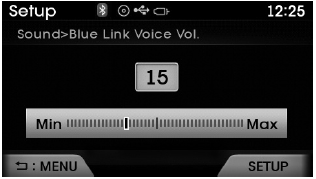

Blue Link Volume
Press the key
Select [Sound]
Select [Blue Link Voice Vol.]
Use ,
keys to adjust the Blue Link Voice
Recognition volume.
✽ NOTICE
This feature may not be available depending on whether your device supports Blue Link.
