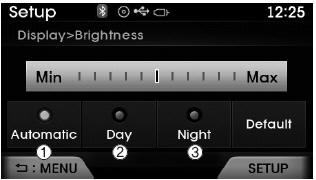

Adjusting the Brightness
Press the key
Select [Display]
Select [Brightness]
Use ,
keys to adjust the screen brightness
or set the Brightness on Automatic, Daylight, or Nightmode.
select the button to reset.
(1) Automatic : Adjusts the brightness automatically
(2) Day : Always maintains the brightness on high
(3) Night : Always maintains the brightness on low

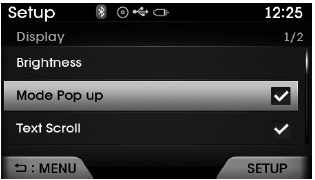

Mode Pop-up
Press the key
Select [Display]
Select [Mode Pop up]
This feature is used to display the Mode Pop-up screen when entering radio and media modes.
When this feature is turned on, pressing the
or
key will display the Mode Pop-up screen.
✽ NOTICE
The media Mode Pop-up screen can be displayed only when two or more media modes have been connected.

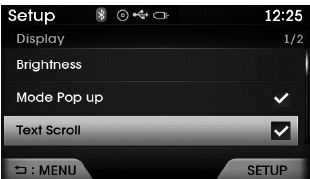

Text Scroll
Press the key
Select [Display]
Select [Text Scroll]
This feature is used to scroll text displayed on the screen when it is too long to be displayed at once.
When turned on, the text is repeatedly scrolled. When turned off, the text is scrolled just once.

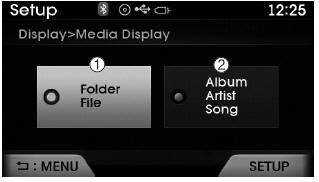

MP3 Information Display
Press the key
Select [Display]
Select [Media Display]
This feature is used to change the information displayed within USB and MP3 CD modes.
(1) Folder File : Displays file name and folder name
(2) Album Artist Song : Displays album name/artist name/song
