Hyundai Azera: Side curtain (if equipped)
Fifth generation HG (2011–2024) / Hyundai Azera 2011-2024 Owners Manual / Features of your vehicle / Interior features / Side curtain (if equipped)

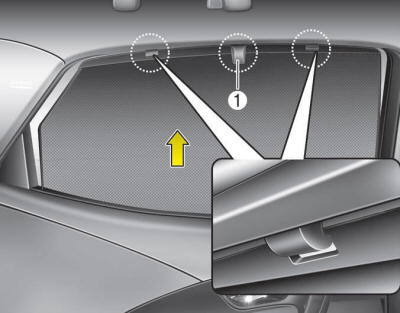

To use the side curtain:
1. Lift the curtain by the hook (1).
2. Hang the curtain on both sides of the hook.
Rear curtain (if equipped)
To fold the rear curtain, press the button. To unfold the rear curtain, press
the button again.
CAUTION
Do not pull or fold the rear curtain by hand. It could cause motor failure.
The rear ...
