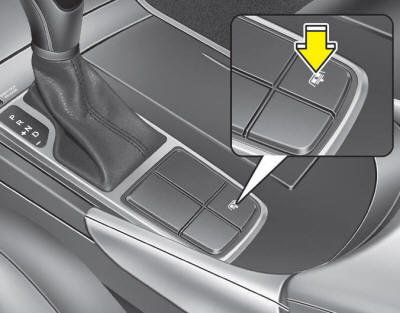

To fold the rear curtain, press the button. To unfold the rear curtain, press the button again.
CAUTION
Do not pull or fold the rear curtain by hand. It could cause motor failure.

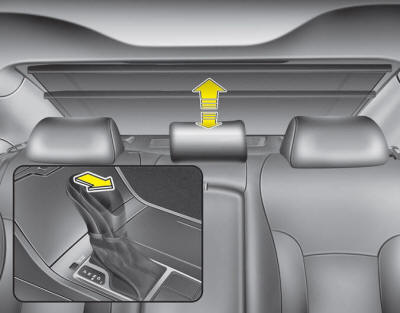

The rear curtain will fold automatically when you shift the shift lever into R (Reverse) and unfold automatically when you shift the shift lever from R (Reverse) into P (Park).
After the rear curtain is folded by shifting the shift lever into R (Reverse) and you drive more than 12 mph (20 km/h) with the shift lever in D (Drive), the rear curtain will unfold automatically.
