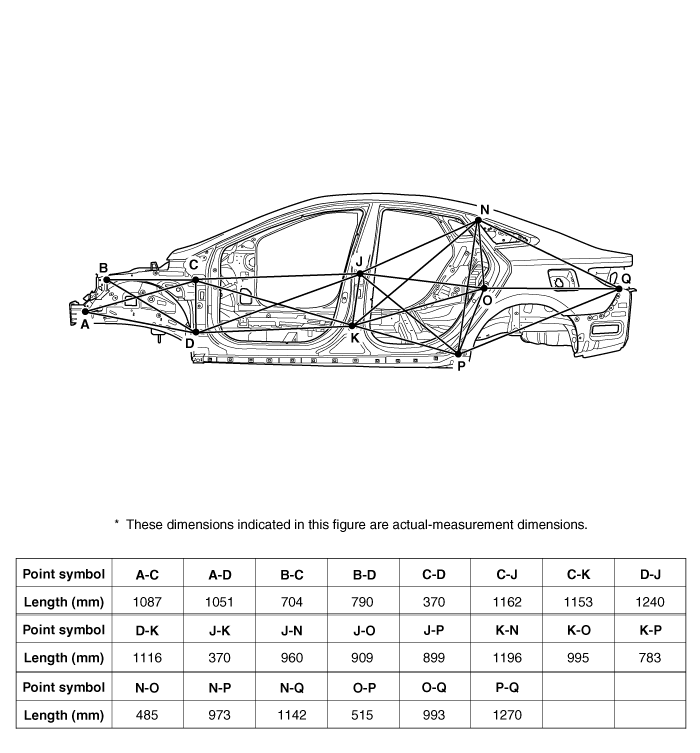

| Side Body A |
|
|
|
| Front side member tooling hole (O20) | Fender apron upper member tooling hole (O10) | Front door upper hinge mounting hole (O13) |
|
|
|
| Front door lower hinge mounting hole (O13) | Rear door upper hinge mounting hole (O13) | Rear door lower hinge mounting hole (O13) |
|
|
|
| Quarter fixed garnish mounting hole (O10) | Rear door switch mounting hole (O10) | Side sill moulding mounting hole (10X10) |
| ||
| Side outer rear corner |

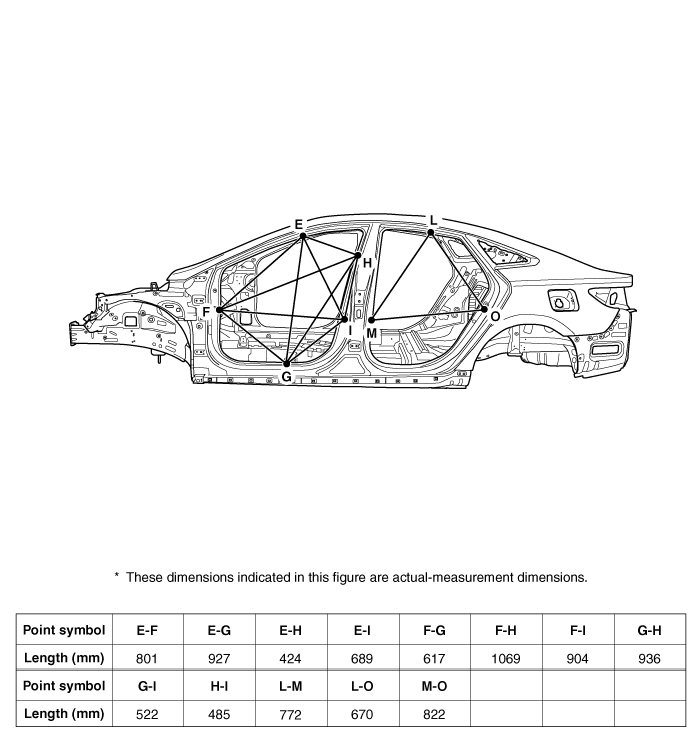

| Side Body B |
|
|
|
| Side outer panel notch | Side outer panel notch | Side outer panel notch |
|
|
|
| Side outer panel notch | Front door switch mounting hole (O10) | Side outer panel notch |
|
| |
| Side outer panel notch | Rear door switch mounting hole (O10) |
Front Body Body Repair
Front Body A
Hood hinge mounting hole (O10)Fender panel mounting hole (O9)Front shock absorber mounting hole (O11)Cowl top cover mounting hole (O9)Roof panel front cornerFront pillar outer corne ...
Interior Body Repair
Interior A
Front pillar trim mounting hole (O8.5) Curtain airbag mounting hole (O6.6) Cowl crossbar mounting hole (O9) Front door checker mounting hole (O13)Cowl side trim mounting hole (6.5X18) ...
