Hyundai Azera: Interior Body Repair
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body (Interior and Exterior) / Body Dimensions / Interior Body Repair
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body (Interior and Exterior) / Body Dimensions / Interior Body Repair

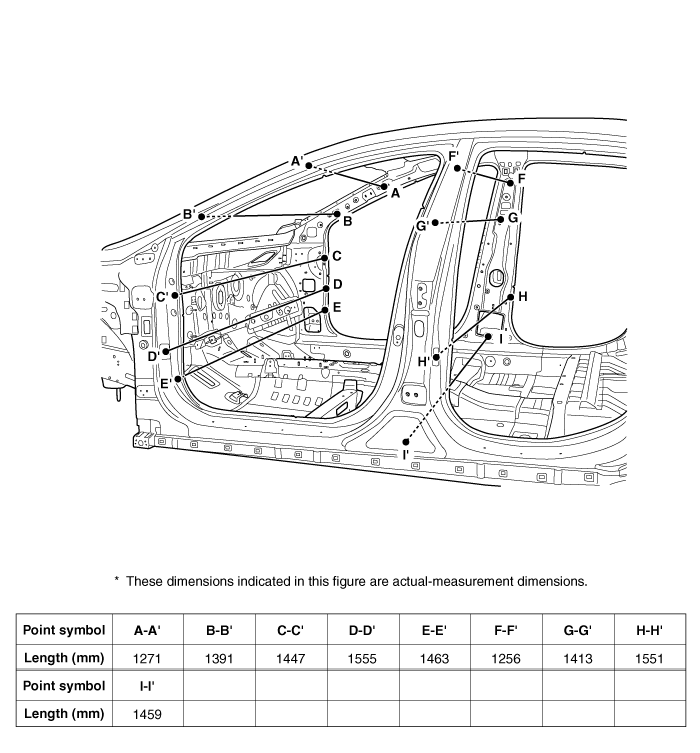

| Interior A |
|
|
|
| Front pillar trim mounting hole (O8.5) | Curtain airbag mounting hole (O6.6) | Cowl crossbar mounting hole (O9) |
|
|
|
| Front door checker mounting hole (O13) | Cowl side trim mounting hole (6.5X18) | Seat belt height adjust upper mounting hole (O16) |
|
|
|
| Seat belt height adjust lower mounting hole (O16) | Rear door checker mounting hole (O13) | Seat belt retractor mounting hole (O12) |

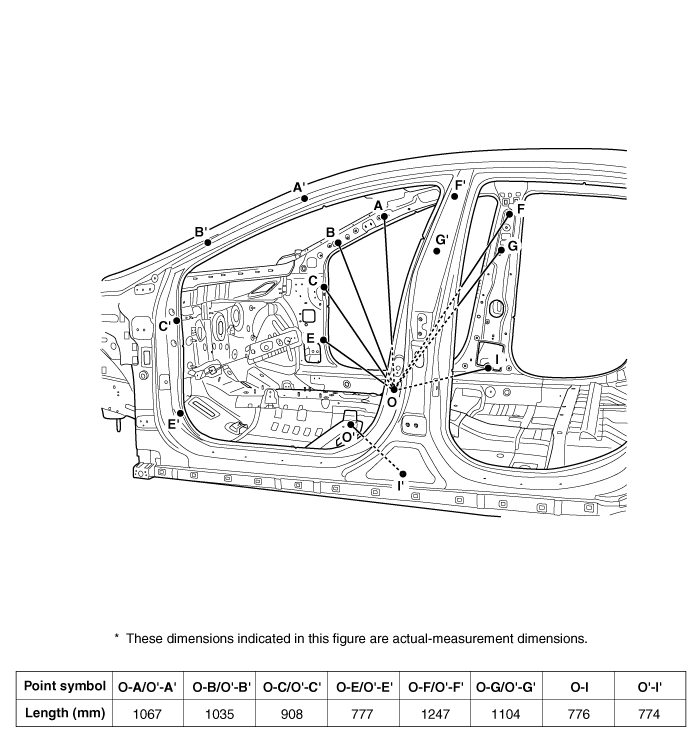

| Interior B |
|
|
|
| Front pillar trim mounting hole (O8.5) | Curtain airbag mounting hole (O6.6) | Cowl crossbar mounting hole (O9) |
|
|
|
| Cowl side trim mounting hole (6.5X18) | Seat belt height adjust upper mounting hole (O16) | Seat belt height adjust lower mounting hole (O16) |
|
| |
| Seat belt retractor mounting hole (O12) | Front seat mounting hole (O11) |

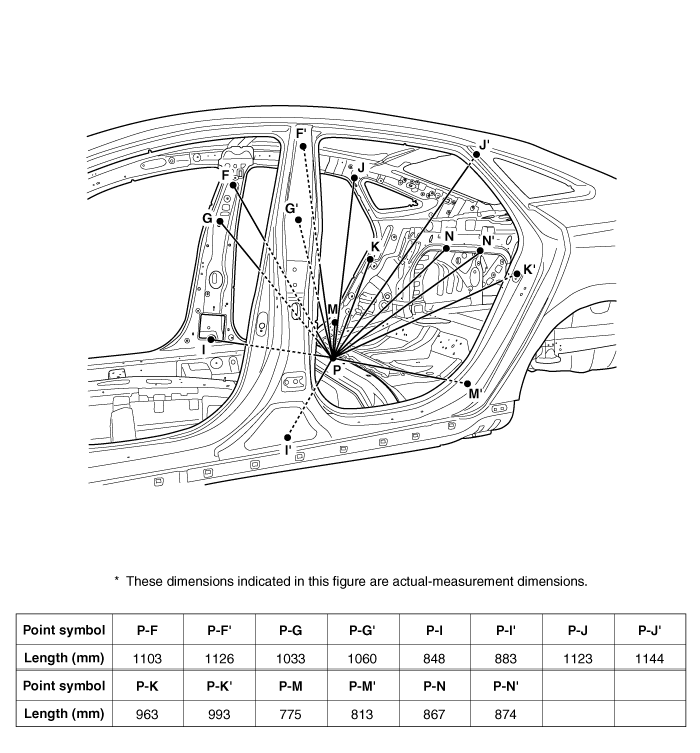

| Interior C |
|
|
|
| Seat belt height adjust upper mounting hole (O16) | Seat belt height adjust lower mounting hole (O16) | Rear door checker mounting hole (O13) |
|
|
|
| Seat belt retractor mounting hole (O12) | Quarter inner upper trim mounting hole (O6.6) | Quarter inner lower panel tooling hole (O16) |
|
| |
| Rear door striker mounting hole (O13) | Quarter inner lower panel tooling hole (O8) |

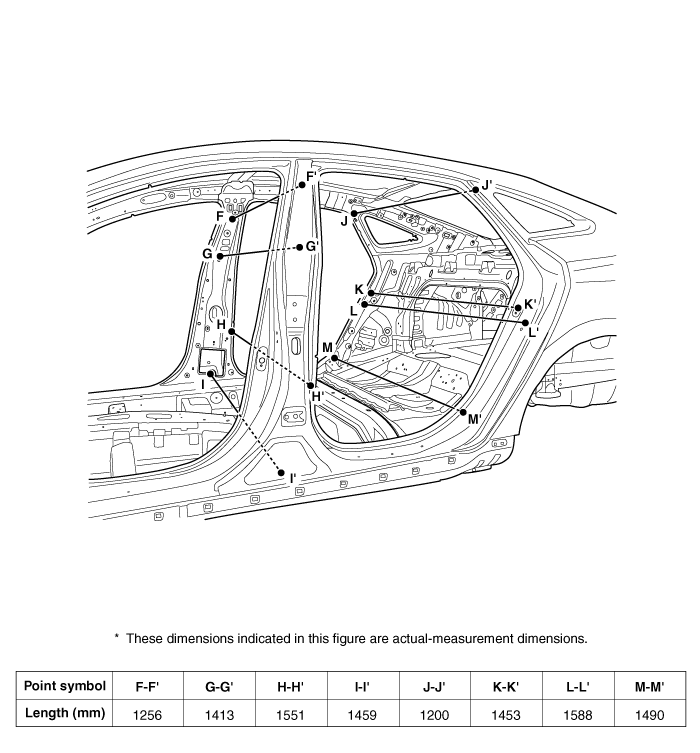

| Interior D |
|
|
|
| Seat belt height adjust upper mounting hole (O16) | Seat belt height adjust lower mounting hole (O16) | Seat belt retractor mounting hole (O12) |
|
|
|
| Quarter inner upper trim mounting hole (O6.6) | Quarter inner lower panel tooling hole (O16) | Quarter inner lower panel tooling hole (O8) |
|
| |
| Rear package tray panel tooling hole (O8) | Rear floor panel tooling hole (O15) |
Side Body Body Repair
Side Body A
Front side member tooling hole (O20)Fender apron upper member tooling hole (O10) Front door upper hinge mounting hole(O13) Front door lower hinge mounting hole (O13) Rear door upper h ...
Rear Body Body Repair
Roof panel rear cornerSide outer panel rear cornerRear package tray trim mounting hole (O12) Side outer panel rear cornerRear combination lamp mounting hole(8.5X8.5) Rear bumper mounting hole (14X ...
