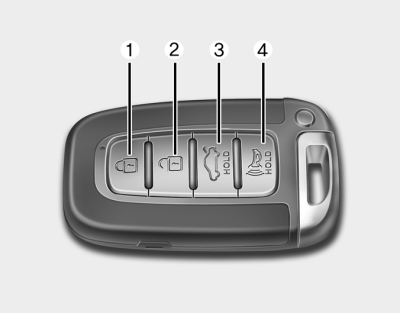

Lock (1)
1. Carry the smart key.
2. Close all doors, engine hood and trunk.
3. Press the lock button(1).
4. All doors and trunk will lock. The hazard warning lights will blink and the chime
will sound once.
5. Make sure that doors are locked by checking the door lock button inside or pulling
the outside door handle.
If any door, trunk or engine hood remains open, the hazard warning lights will not operate. If all doors, trunk and engine hood are closed after the lock button is pressed, the hazard warning lights will blink once.
You can activate or deactivate the Lock Sound (chime sound) function in the vehicle. Refer to "User Settings" in this section.
Unlock (2)
1. Press the unlock button(2).
2. The driver’s door will unlock. The hazard warning lights will blink and the chime
will sound twice.
3. Press the unlock button(2) once more within 4 seconds.
4. All doors and trunk will unlock.The hazard warning lights will blink and the
chime will sound twice.
You can activate or deactivate the Two Turn Unlock and Unlock Sound (chime sound) function in the vehicle. Refer to "User Settings" in this section.
✽ NOTICE
Trunk open (3)
1.Press the trunk open button(3) for more than 1 second.
2.The trunk will open. The hazard warning light will blink twice to indicate the
trunk is opened.
✽ NOTICE
Alarm (4)
1. Press the alarm button(4) for more than 1 second.
2. The horn sounds and hazard warning light flashes for about 30 seconds.
To stop the horn and lights, press any button on the smart key.
