Hyundai Azera: ETC (Electronic Throttle Control) System Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Hyundai Azera 2011-2024 Service ManualHyundai Azera: ETC (Electronic Throttle Control) System Schematic Diagrams

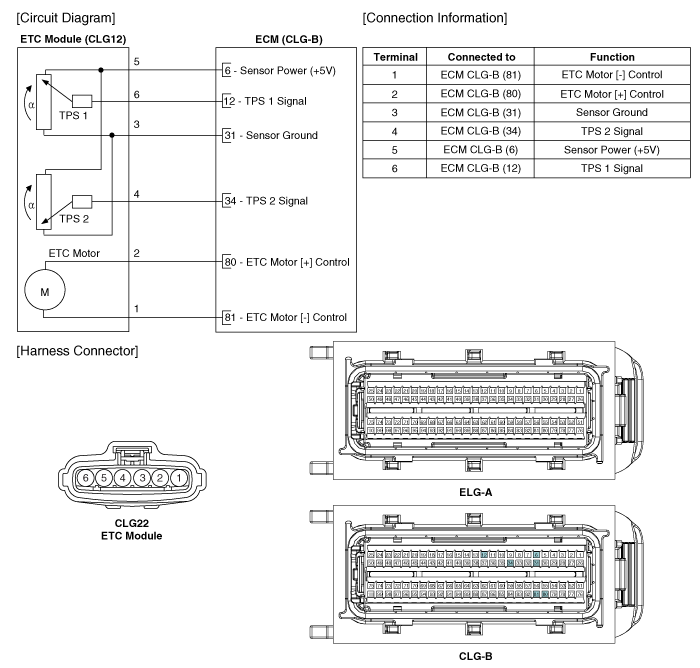

Circuit Diagram

ETC (Electronic Throttle Control) System Specifications
Specification [Throttle Position Sensor (TPS)] Throttle angle(°)Output Voltage (V)TPS1TPS200.54.5100.964.05201.413.59301.873.14402.322.68502.782.23603.231.77703.691.32804.140.86904.60.41984.650.35 ...

ETC (Electronic Throttle Control) System Repair procedures
Inspection Throttle Position Sensor (TPS) 1. Connect the GDS on the Data Link Connector (DLC). 2. Start the engine and measure the output voltage of TPS 1 and 2 at C.T. and W.O.T. Throttle ...
