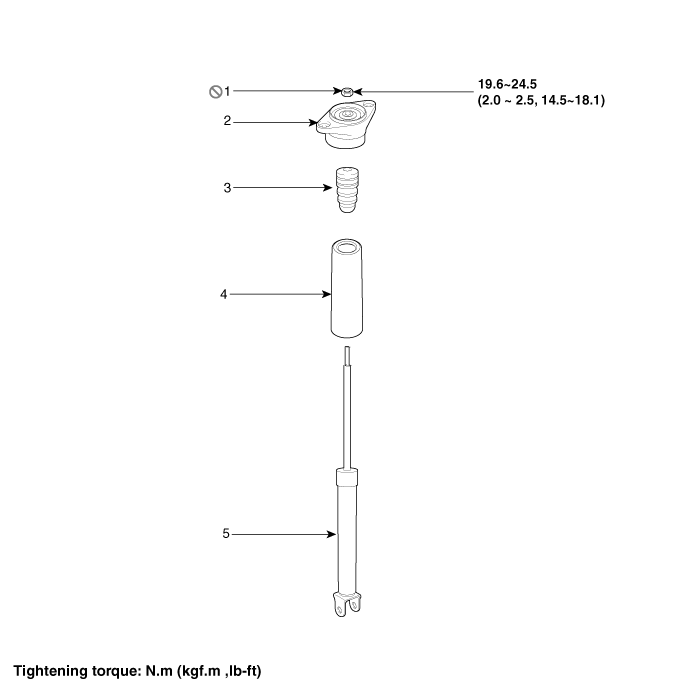

| Components |
| 1. Self locking nut 2. Bracket assembly 3. Bumper rubber | 4. Dust cover 5. Shock absorber |
Components and Components Location
Components
1. Sub frame2. Coil spring3. Upper arm4. Assist arm5. Trailing arm6. Rear axle
...
Rear Shock Absorber Repair procedures
Replacement
1.
Remove the rear wheel & tire (A).
Tightening torque:
88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)
Be careful not to damage to the hub bolts w ...
