Hyundai Azera: Power Window Motor Schematic Diagrams
Fifth generation HG (2011–2024) / Hyundai Azera 2011-2024 Service Manual / Body Electrical System / Power Windows / Power Window Motor Schematic Diagrams
| Circuit Diagram |

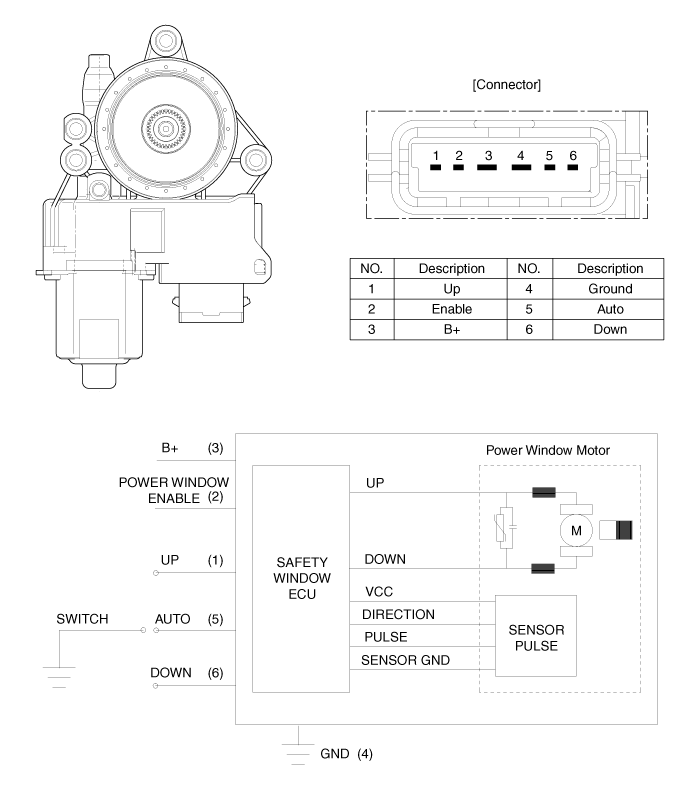

| Front Safety Window |

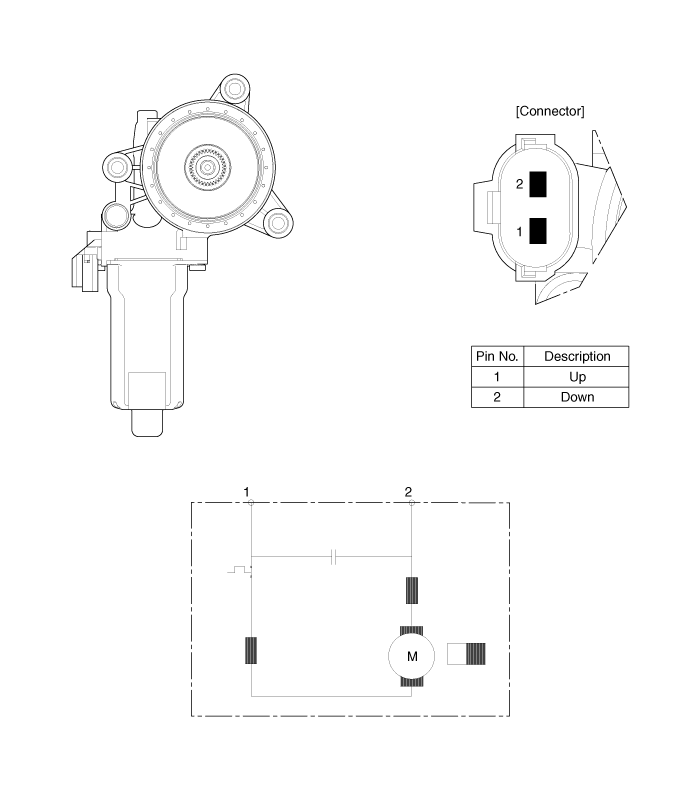

| Rear Window |
Description and Operation
Function Of Safety Power Window
When driver door power window auto-up switch is operated, safety function is activated.
1.
Safety function condition
When detect the force of 100N (using the 10N/ ...
Power Window Motor Repair procedures
Inspection
Front Power Window Motor Inspection
1.
Remove the front door trim panel.
(Refer to Body - "Front Door Trim")
2.
Disconnect the connector from the motor.
3.
Connect the termina ...
