| Description |
When the vehicle is turning with respect to a vertical axis
the yaw rate sensor detects the yaw rate electroniclly by the vibration
change of plate fork inside the yaw rate sensor.
If yaw velocity reaches the specific velocity after it detects the vehicle'yawing, the ESC control is reactivated.
The later G sensor senses vehicle's lateral G. A small
element inside the sensor is attached to a deflectable leverarm by later
G.
Direction and magnitude of lateral G loaded to vehicle can be known with electrostatic capacity changing according to lateral G.
Specifications
| Description | Specification | Remarks |
| Operating voltage | 10 ~ 16V |
| Output signal | CAN Interface |
| Operating temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Yaw-rate sensor | Measurement range | -75 ~ 75°/sec |
| Frequency response | 15 ~ 45Hz |
| G sensor | Measurement range | -14.715 ~ 14.715m/s? |
| Frequency response | 50Hz ± 60% (±3dB) |

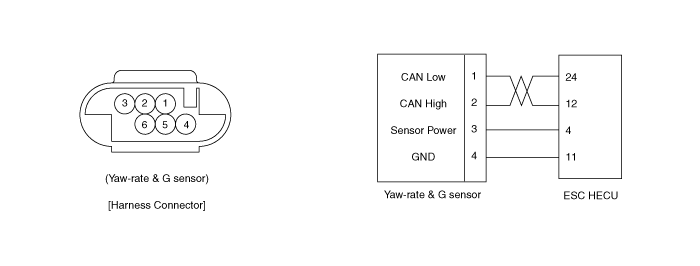

External Diagram
