Hyundai Azera: Oil Pump Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Automatic Transaxle System / Hydraulic System / Oil Pump Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Automatic Transaxle System / Hydraulic System / Oil Pump Components and Components Location

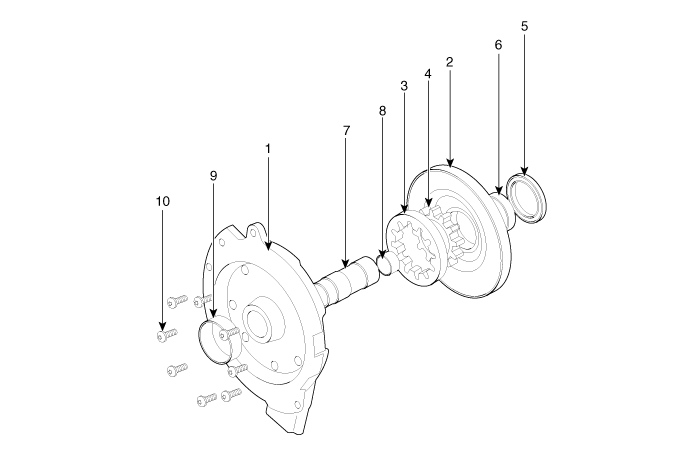

| Components |
| 1. Reaction shaft support assembly 2. Oil pump housing 3. Driven gear 4. Drive gear 5. Oil seal | 6. Bush-Housing 7. Reaction shaft 8. Bush- Reaction shaft 9. Sleeve 10. Bolt |

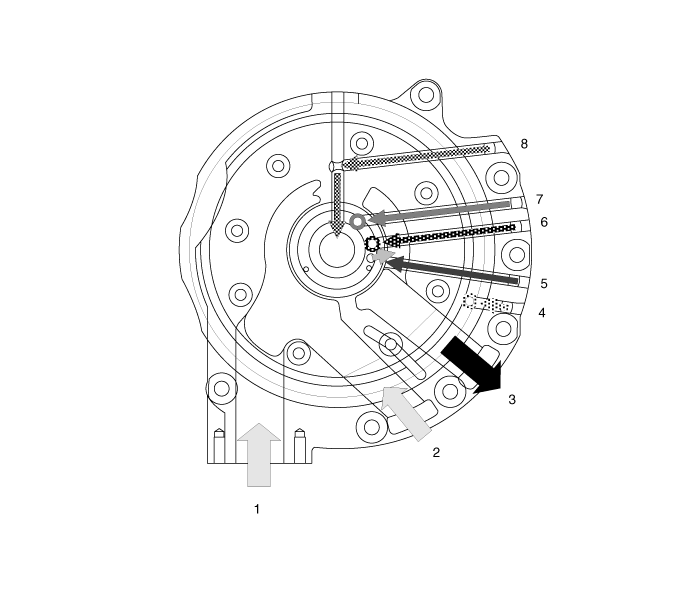

Oil Pump Operation Flow
| 1. Inhale(Oil filter) 2. Inhale(Valve body) 3. Outlet 4. 26/B operation pressure | 5. 35R/C operation pressure 6. Lubrication 7. Line up clutch operation pressure 8. Line up clutch cancellation |
Oil Pump Description and Operation
Description
The oil pump is built-in as a single unit with the 26 Brake
chamber. Rotation of the pump builds the hydraulic pressure needed for
the lubrication of the various parts of the transa ...
Fluid Components and Components Location
Components Location
1. Injection hole(eyebolt)2. Oil level plug3. Oil drain plug
...
