Hyundai Azera: Fluid Components and Components Location - Hydraulic System - Automatic Transaxle System - Hyundai Azera 2011-2025 Service ManualHyundai Azera: Fluid Components and Components Location

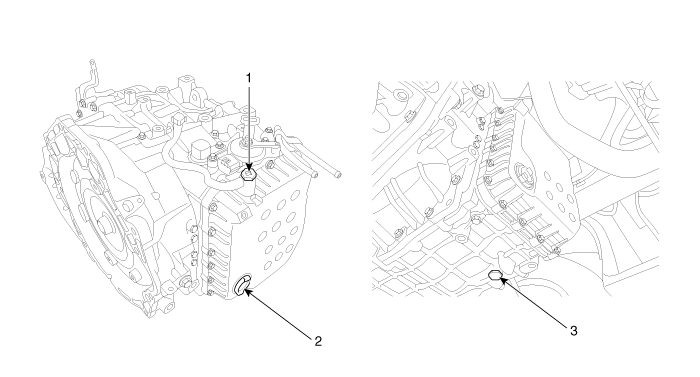

Components Location

1. Injection hole(eyebolt)
2. Oil level plug
3. Oil drain plug

Oil Pump Components and Components Location
Components 1. Reaction shaft support assembly2. Oil pump housing3. Driven gear4. Drive gear5. Oil seal6. Bush-Housing7. Reaction shaft8. Bush- Reaction shaft9. Sleeve10. Bolt Oil Pump Operatio ...

Fluid Repair procedures
Service Adjustment Procedure Oil level Check     A check of Automatic Transaxle Fluid(ATF) level is not normally required during scheduled services. If an oil leak is found, ...
