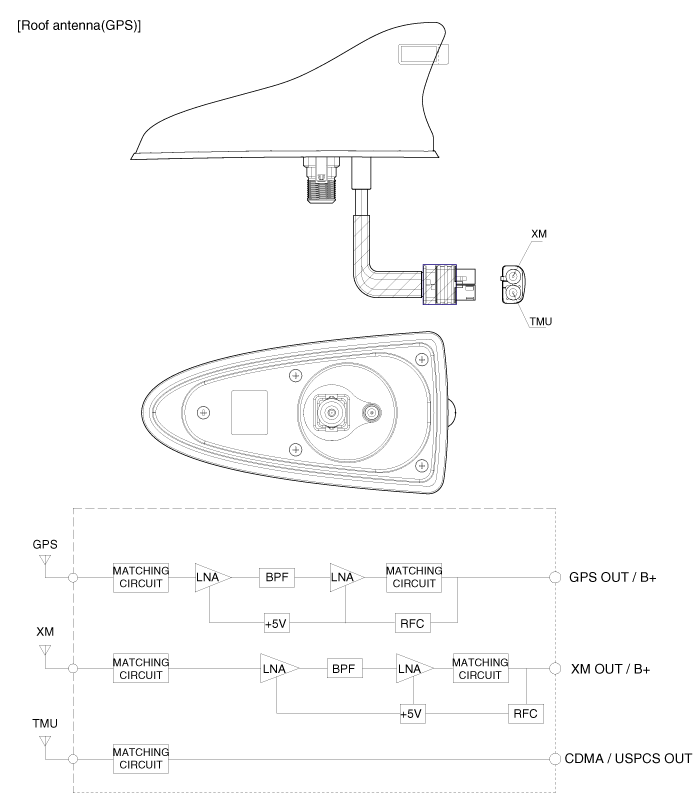

Hyundai Azera: MTS Antenna Components and Components Location

Microphone Repair procedures

Inspection 1. Disconnect the negative(-) battery terminal. 2. Remove the roof trim. (Refer to Body - "Roof Trim Assembly") 3. Remove the handsfree mic (A) after disconnect the connector f ...

MTS Antenna Repair procedures

Removal Roof Antenna (GPS) 1. Remove the rear roof trim. (Refer to Body - "Roof Trim Assembly") 2. Disconnect the Connector(A) and cables (B) from the roof antenna. 3. Remove the roof an ...
