The light switch has a Headlight and a Parking light position.

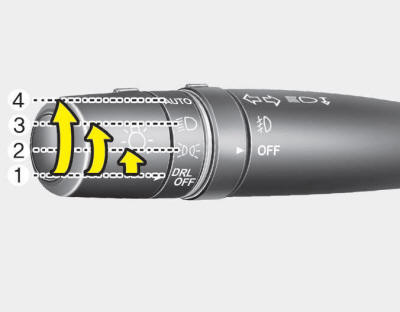

To operate the lights, turn the knob at the end of the control lever to one of the following positions:
(1) OFF position
(2) Parking light position
(3) Headlight position
(4) Auto light position (if equipped)

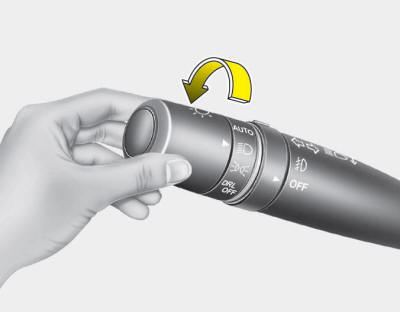

Parking light position (
)
When the light switch is in the parking light position, the position, license and instrument panel lights are ON and the position light indicator is ON.

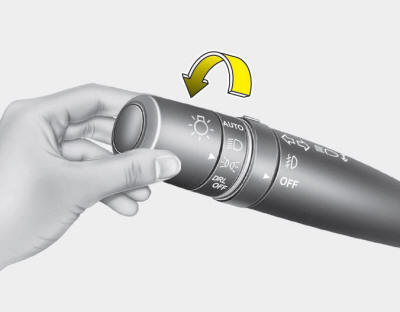

Headlight position (
)
When the light switch is in the headlight position, the head, position and license plate lights are ON.
The ignition switch must be in the ON position to turn on the headlights.

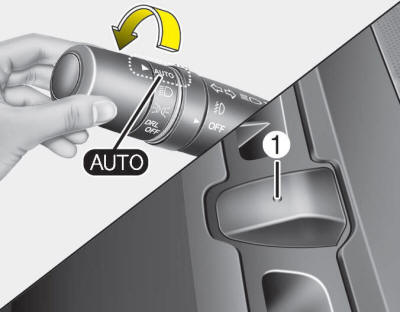

Auto light position
When the light switch is in the AUTO light position, the parking lights and headlights will be turned ON or OFF automatically depending on the amount of light outside the vehicle.
- Never place anything over sensor (1) located on the instrument panel. This will ensure better autolight system control.
- Do not clean the sensor using a window cleaner. The cleaner may leave a light film which could interfere with sensor operation.
- If your vehicle has window tint or other types of metallic coating on the front windshield, the Auto light system may not work properly.
Daytime running light
Daytime Running Lights (DRL) can make it easier for others to see the front of
your vehicle during the day. DRL can be helpful in many different driving conditions,
and it is especially helpful afte ...
High beam operation
To turn on the high beam headlights, push the lever away from you. Pull it back
for low beams.
The high beam indicator will light when the headlight high beams are switched
on.
To prevent the ...
