Hyundai Azera: ICM (Integrated Circuit Module) Relay Box Schematic Diagrams - Fuses And Relays - Body Electrical System - Hyundai Azera 2011-2025 Service ManualHyundai Azera: ICM (Integrated Circuit Module) Relay Box Schematic Diagrams

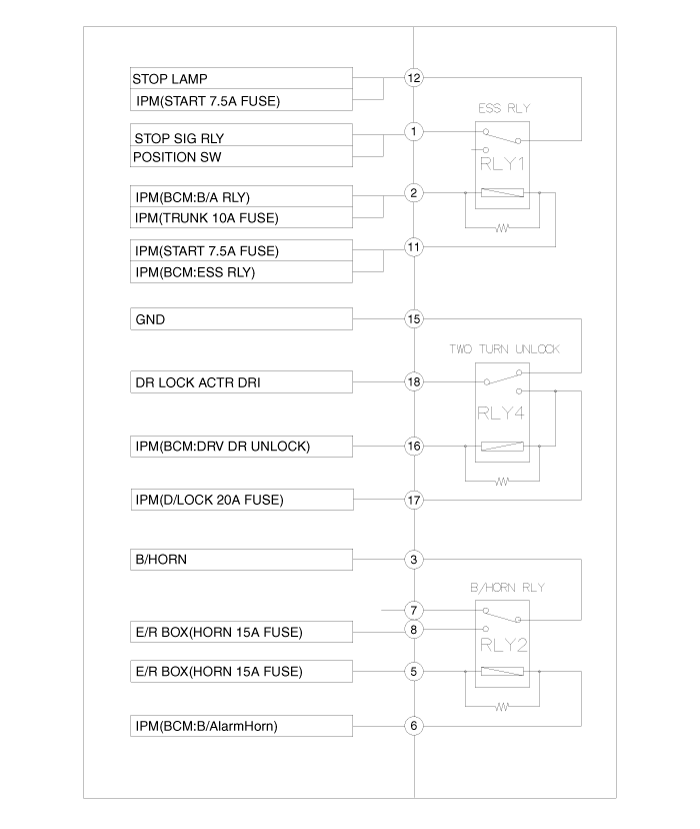

Circuit Diagram

ICM (Integrated Circuit Module) Relay Box Components and Components Location
Component Input/Output Specification No.ConnectorNo.Connector1 -11 -2 -12 -3Burglar horn13 -4 -14 -5Engine room box(Horn 15A fuse)15GND6IPM(BCM : Burglar alarm h ...

ICM (Integrated Circuit Module) Relay Box Description and Operation
Description The ICM relay is united with rear fog lamp relay, ECS relay, burglar horn relay and ESS relay which installed inside the passenger crash pad. ...
