Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Owners Manual / Features of your vehicle / Instrument cluster / Instrument panel illumination

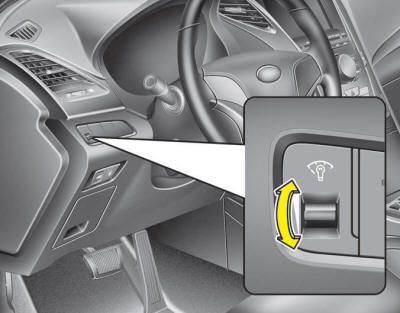

The instrument panel illumination intensity can be adjusted as follows:
- Ignition switch in the ON position
- Pushing the control switch up or down
The illumination intensity is shown on the instrument cluster LCD display.
Instrument cluster
1. Tachometer
2. Turn signal indicators
3. Speedometer
4. LCD display
5. Fuel gauge
6. Engine coolant temperature gauge
7.Warning and indicator lights ...
Gauges
Speedometer
The speedometer indicates the vehicle speed.
The speedometer is calibrated in miles per hour and/or kilometers per hour.
Tachometer
The tachometer indicates the engine speed in rev ...
