Hyundai Azera: Gauges - Instrument cluster - Features of your vehicle - Hyundai Azera 2011-2025 Owners ManualHyundai Azera: Gauges

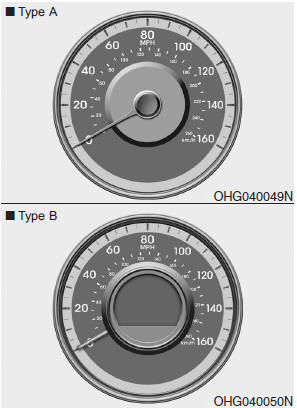

Speedometer


Speedometer

The speedometer indicates the vehicle speed.

The speedometer is calibrated in miles per hour and/or kilometers per hour.

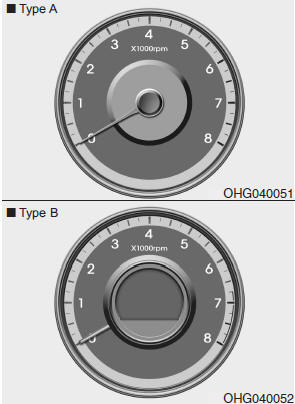

Tachometer

The tachometer indicates the engine speed in revolutions per minute (rpm).


The tachometer indicates the engine speed in revolutions per minute (rpm).

Use the tachometer to select the correct shift points and to prevent lugging and/or over-revving the engine.

CAUTION - Red zone

Do not operate the engine within the tachometer's RED ZONE. This may cause severe engine damage.

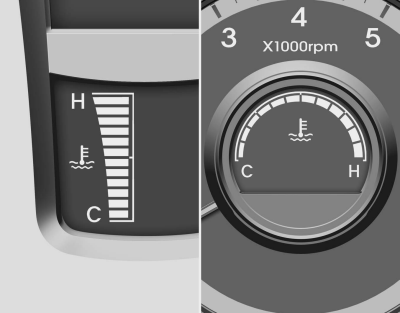

Engine coolant temperature gauge

This gauge shows the temperature of the engine coolant when the ignition switch


This gauge shows the temperature of the engine coolant when the ignition switch is ON.

Do not continue driving with an overheated engine. If your vehicle overheats, refer to “If the engine overheats” in section 6.

If the gauge pointer moves beyond the normal range area toward the “H” position, it indicates overheating that may damage the engine.

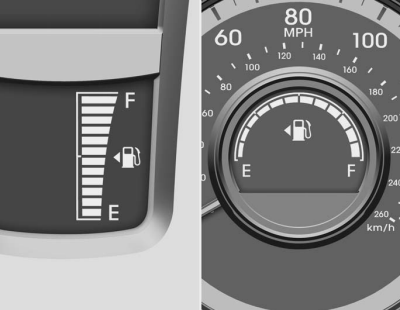

Fuel gauge

The fuel gauge indicates the approximate amount of fuel remaining in the fuel


The fuel gauge indicates the approximate amount of fuel remaining in the fuel tank.

WARNING - Fuel gauge

Stop and obtain additional fuel as soon as possible after the warning light comes on or when the gauge indicator comes close to the E level. Running out of fuel can expose vehicle occupants to danger.

CAUTION - Low fuel

Avoid driving with a extremely low fuel level. Running out of fuel could cause the engine to misfire, damaging the catalytic converter.

Instrument panel illumination
The instrument panel illumination intensity can be adjusted as follows: Ignition switch in the ON position Pushing the control switch up or down The illumination intensity is shown on the ...

LCD display
The Trip computer, User settings, Maintenance system, Warnings, etc. are displayed on the LCD display. To change between groups, press the DISP button. To change between modes in groups, press t ...
