Hyundai Azera: Heater Hose Repair procedures
Fifth generation HG (2011–2024) / Hyundai Azera 2011-2024 Service Manual / Engine Mechanical System / Cooling System / Heater Hose Repair procedures
Fifth generation HG (2011–2024) / Hyundai Azera 2011-2024 Service Manual / Engine Mechanical System / Cooling System / Heater Hose Repair procedures
| Removal and Installation |
| 1. |
Remove the air duct and air cleaner assembly.
(Refer to Intake And Exhaust System - "Air Cleaner") |
| 2. |
Drain the coolant.
(Refer to Cooling System - "Coolant") |
| 3. |

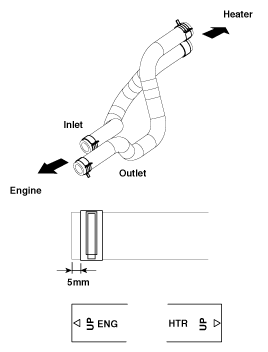

Remove the heater hoses (A).
|
| 4. |
Installation is reverse order of removal |
Heater Hose Components and Components Location
Components
1. Heater hose (Inlet)2. Heater hose (Outlet)3. Clamp
...
Radiator Hose Components and Components Location
Components
1. Radiator upper hose2. Radiator lower hose3. Hose clip4. Clamp
...
