Hyundai Azera: Heated Steering wheel Description and Operation
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Steering System / Steering wheel / Heated Steering wheel Description and Operation
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Steering System / Steering wheel / Heated Steering wheel Description and Operation
| Description |
The grip is heated as painting heat paint on steering grip for driver convenience for winter
| Heated control unit |

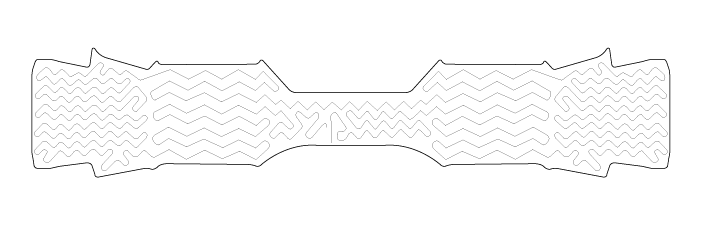

| Heated pad |
Specifications
| Item | Specification | |||
| Voltage | 13.5 V | |||
| Heated pad resistance | 1.6 ~ 2.0 ? ± 10% | |||
| NTC resistance | 10.0 k? ± 10% (25°C) | |||
| Current | 124A not over | |||
Repair procedures
Removal
1.
Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
2.
Turn the steering wheel so that the front wheels can face straight ahead.
3.
R ...
Heated Steering wheel Schematic Diagrams
System Circuit Diagram
Terminal Function
HousingPinFunctionWire colorPadAGNDBackBHEATERYellowCNTC+Back / YellowDNTC-BackRemotecontrolAGNDBackBBATRedCLEDGreenDSWITCHWhite
...
