Hyundai Azera: Fuel Tank Pressure Sensor (FTPS) Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Hyundai Azera 2011-2025 Service ManualHyundai Azera: Fuel Tank Pressure Sensor (FTPS) Schematic Diagrams

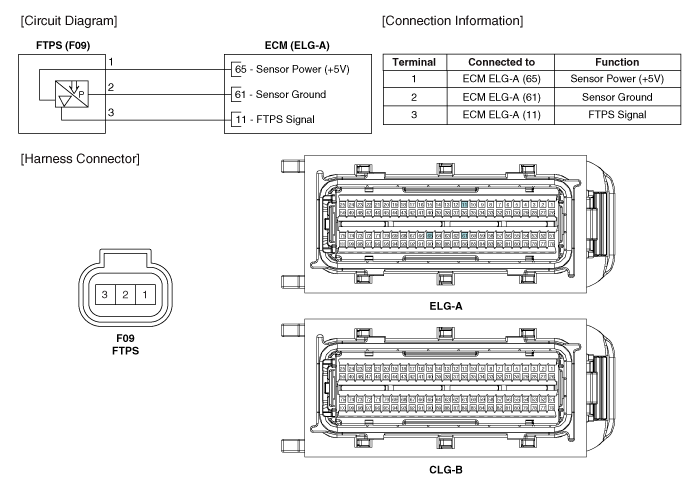

Circuit Diagram

Fuel Tank Pressure Sensor (FTPS) Specifications
Specification Pressure [kPa (kgf/cm?, psi)]Output Voltage (V)-6.67 (-0.06, -0.97)0.502.5+6.67 (0.068, 0.97)4.5 ...

Fuel Tank Pressure Sensor (FTPS) Repair procedures
Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the FTPS. Specification: Refer to "Specification" Removal 1. Turn the ignition swit ...
