Hyundai Azera: Inhibitor Switch Schematic Diagrams
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Inhibitor Switch Schematic Diagrams
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Inhibitor Switch Schematic Diagrams

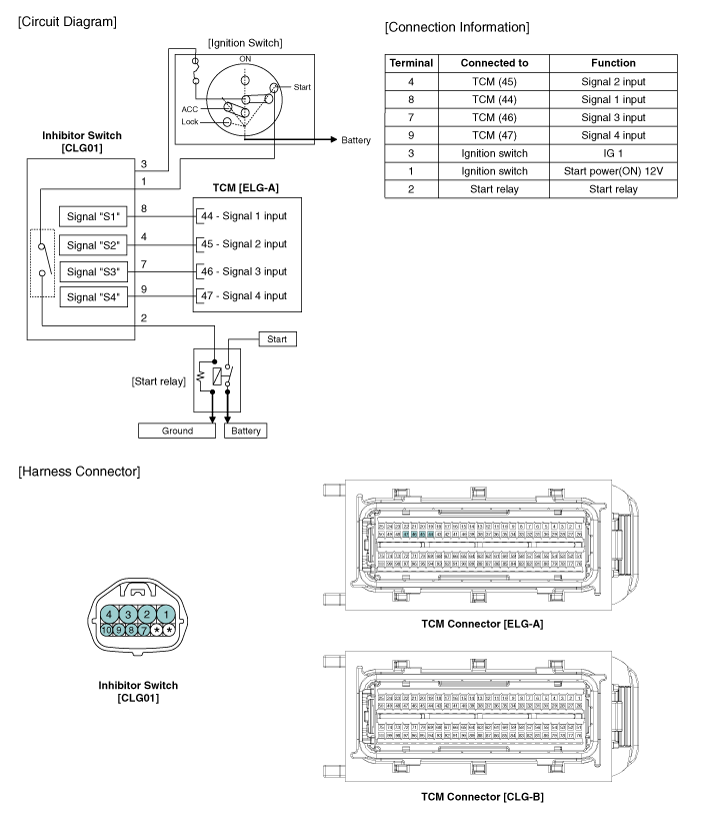

| Circuit Diagram |
Inhibitor Switch Specifications
Specifications
? Type: Combination of output signals from 4 terminals
Power supply (V)12Output typeCombination of output signals
Signal Code Table
PP-RRR-NNN-DDSignal 112V12V00000Signal 20 ...
Inhibitor Switch Troubleshooting
Fault Diagnosis
Fault Diagnosis for Symptom
Major Symptom Expected Cause Items to Check and Measures Shift lever not operating Gear not marked on cluster Shock occurs wh ...
