| Description |
A ratchet tightening device on the threaded fuel filler cap
reduces the chances of incorrect installation, which would seal the fuel
filler. After the gasket on the fuel filler cap and the filler neck
flange contact each other, the ratchet produces a loud clicking noise
indicating the seal has been set.

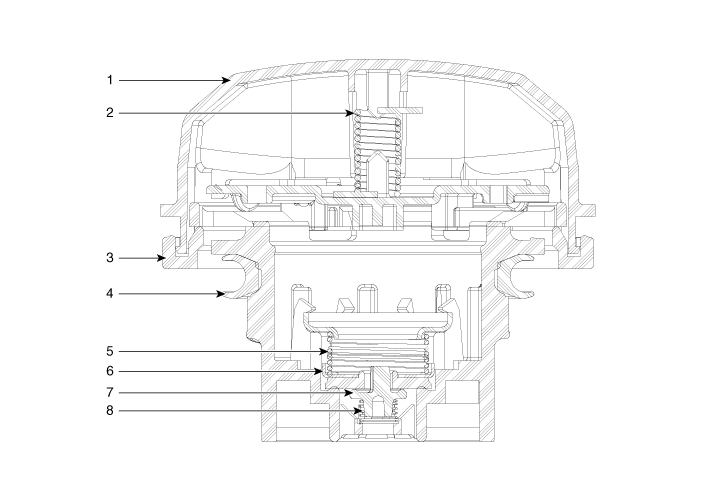

| 1. Cover 2. Torsion spring 3. Retainer 4. Gasket seal | 5. Spring 6. Plate seal 7. Vacuum valve 8. Spring |
On-board Refueling Vapor Recovery (ORVR) valve Repair procedures
Removal
1.
Turn the ignition switch OFF, and then remove battery (-) cable.
2.
Remove the fuel tank.
(Refer to Fuel System - "Fuel Tank")
3.
Disconnect the vapor hose (A).
4.
Remove ...
