Hyundai Azera: Exterior overview - Your vehicle at a glance - Hyundai Azera 2011-2025 Owners ManualHyundai Azera: Exterior overview

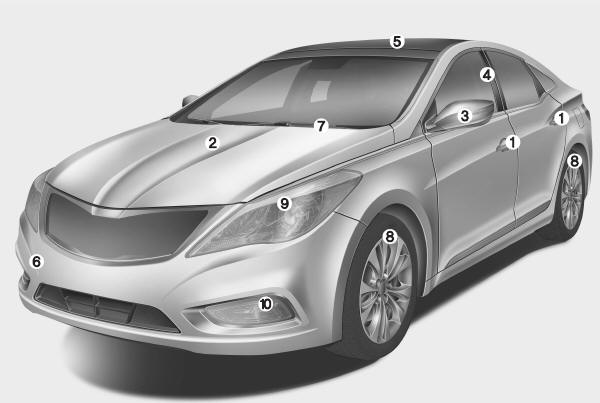

1. Door handle switch (smart key)


1. Door handle switch (smart key)
2. Hood
3. Outside rearview mirror
4. Windows
5. Panorama sunroof
6. Removable towing hook
7. Wiper blade
8. Tires and wheels
9. Headlamp
10. Fog light

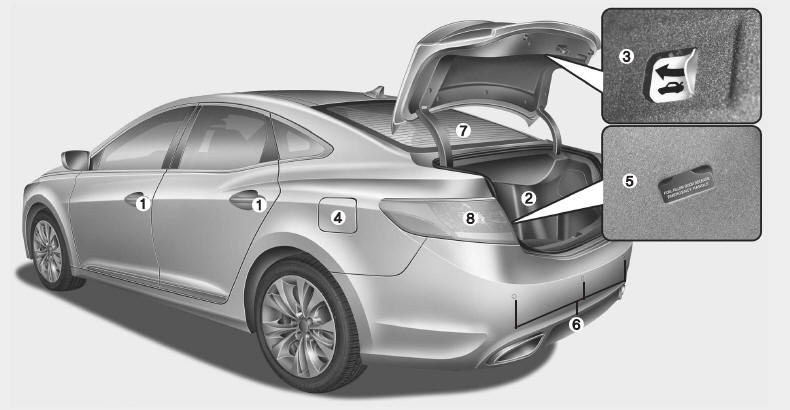

1. Door


1. Door
2. Trunk
3. Emergency trunk safety release
4. Fuel filler lid
5. Emergency fuel filler lid release
6. Rear parking assist system
7. Glass antenna
8. Rear combination lamp
