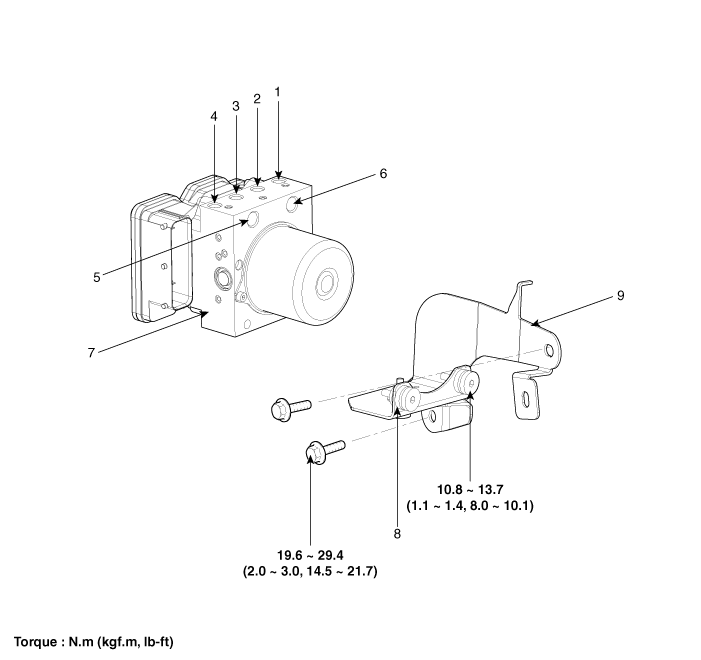

| Components |
| 1. Front - left tube 2. Rear - right tube 3. Rear - left tube 4. Front - right tube 5. MC2 | 6. MC1 7. ESC control module (HECU) 8. Damper 9. Bracket |
EBD(Electronic Brake-force Distribution) Description and Operation
Operation
The EBD system (Electronic Brake force Distribution) as a
sub-system of the ABS system is to control the maximum braking
effectiveness by the rear wheels.
It further utilizes the e ...
ESC Control Module Repair procedures
Removal
1.
Turn the ignition switch OFF.
2.
Remove the air duct (B) and air cleaner assembly (A).
3.
Remove the connector and then arrange the wiring harness (A).
4.
Remove the brake f ...
