Hyundai Azera: Driver Airbag (DAB) Module and Clock Spring Components and Components Location - Airbag Module - Restraint - Hyundai Azera 2011-2024 Service ManualHyundai Azera: Driver Airbag (DAB) Module and Clock Spring Components and Components Location

Fifth generation HG (2011–2024) / Hyundai Azera 2011-2024 Service Manual / Restraint / Airbag Module / Driver Airbag (DAB) Module and Clock Spring Components and Components Location

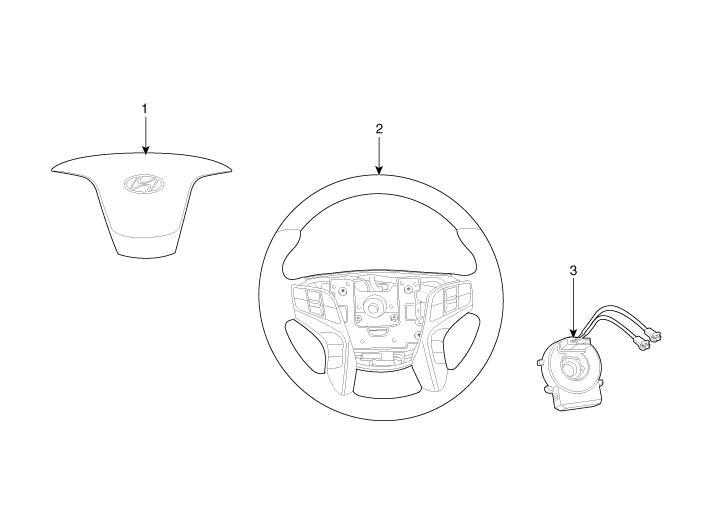

Components

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring

Driver Airbag (DAB) Module and Clock Spring Description and Operation
Description Driver Airbag (DAB) is installed in the steering wheel and electrically connected to SRSCM via the clock spring. It protects the driver by deploying the airbag when frontal crash oc ...

Driver Airbag (DAB) Module and Clock Spring Repair procedures
Removal 1. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 2. Remove the driver airbag module mounting bolts (A). 3. Remove the wiring fix ...
