Description
Block Diagram

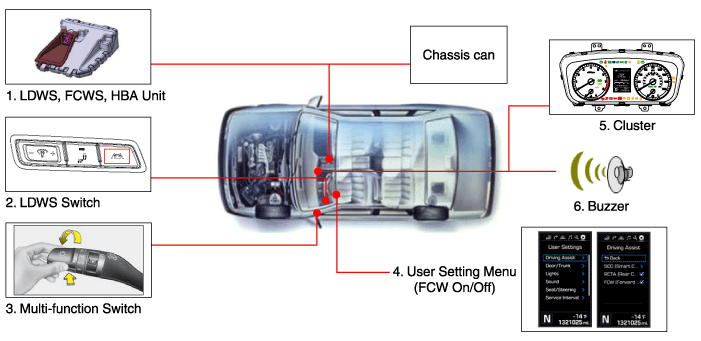

LDWS is composed of below units
No
Item
Function
Position
1
LDWS UNIT
1.

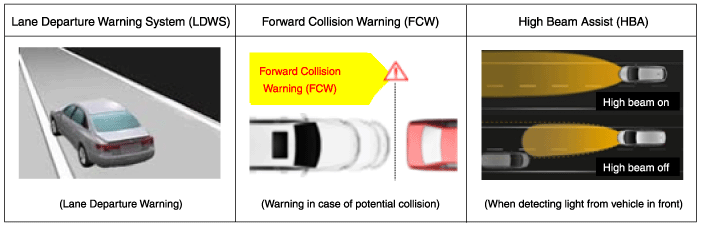

Lane Departure Warning System (LDWS) : Detects drive lane in front and engages warning function if the vehicle is in danger of departing from the drive lane.
2.
FCW : Monitors front of the vehicle and engages warning function if the vehicle is in danger of collision
3.
High Beam Assist (HBA) : Detects head lamp and tail lamp lights of vehicle ahead and turns the high beam ON/OFF.
Windshield Glass
2
LDWS Switch
 LDWS On/Off Switch
Crash Pad (Left)
3
Multi-function Switch
 HBA On/Off Switch (MF : Auto mode)
Steering Wheel
4
User Setting Menu
 FCW On/Off Menu
Cluster menu
5
Cluster/Buzzer
 FCW/LDWS Waning
Cluster

Camera unit of the LDWS processes below function with the video signal inputted
-
Detect and analyze drive lane
-
Detect the light in front vehicle
-
Detect and analyze status in front vehicles, and make warnning sounds (or message) for driver if necessary.
-
The lane departure warning system transmits The information using high speed CAN communication.
1.
Lane Departure Warning System (LDWS) unit

The lane departure warning system is a convenient device to recognize the lanes ahead with the camera image and vehicle signal information and to alarm against the deviation from the lane. It includes the camera unit and recognizes the lane by calculating the input camera image signal.
The sensor module for screen image processing by sensing the lane ahead on the camera unit senses the lane to keep the lane and calculates the key parameters, i.e. vehicle center offset, road width, vehicle driving angle and road curvature. The following procedures are the lane recognizing process through screen image processing.
(1)
Sensing the land in procedure of Inputting the road image
(2)
Filtering calculation emphasizing the lane
(3)
Extraction of the lane candidate point (The constituent points which are estimated as lane)
(4)
Sensing the land by means of candidate point
2.
LDWS Operation process
When the LDWS switch is pressed, the operation state of the lane departure warning system is displayed at the center while the LDWS lamp is on.
The specific classification of the displays is shown in the following table.
Category
Operation
LDWS Display and Alert
Control
(Button)
On
LDWS On

Off
LDWS Off
Operation Status
Cluster indicator
Operation Condition
Activates if vehicle speed exceeds set speed with LDWS ON.

[Start : 70km/h (44mph) ^]
[Stop : 66km/h (41mph) v]

? Lane departure warning is not activated if turn signal or hazard lamp is ON.


3.
FCWS Operation process
Category
Operation
LDWS Display and Alert
Control
(USM)
On
FCW On

Off
FCW Off
Operation Status
Displayed only when alarm is activated
Operation Condition
Activates if vehicle speed exceeds set speed with FCW ON.

[Start: 40km/h (25mph) ^]
[Stop: 35km/h (22mph) v]

1.
FCWS Display
2.
FCWS Control Switch:Composed of User Set Menu (USM)

4.

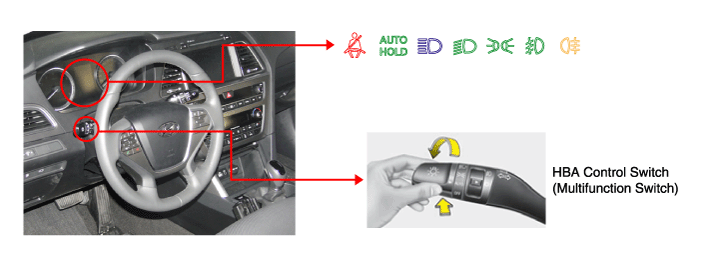

High Beam Assist
(Multi-function Switch Auto/High beam position)
Category
Operation
LDWS Display and Alert
Control
(Button)
On
If High Beam switch is turned ON (push-return) while the Multifunction Switch is set to Auto.

HBA On + Low beam

HBA On + High beam
Off
If High Beam switch is activated again while the Multifunction switch is NOT set to Auto or when HBA is ON.
Operation Status
Cluster display
Operation Condition
Activates if vehicle speed exceeds set speed with HBA ON.

[Start: 45km/h (28mph) ^]
[Stop: 30km/h (18mph) v]

? Activates only if Multifunction switch is set to Auto and Low Beam is ON.

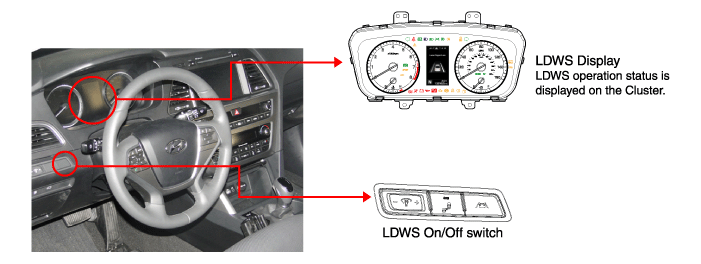

LDWS ON/OFF switch
When the LDWS switch is pressed, the LDWS is on while the LDWS lamp is on. When the switch is pressed again, the LDWS is off and the display lamp is off.

High Beam Auto Control Switch: High Beam Auto Control System is turned ON if the Multifunction Switch Light SW is set to AUTO, and the Light SW is set to High Beam position (Pushed).
-
If the Light SW is not set to AUTO, or to High Beam position, the High Beam Auto Control System is turned OFF.

The alarm method of LDWS
1.
Visual alarm : The lane to the direction of departure is blinked in yellow.
The operating conditions of LDWS
The operating conditions of LDWS is as below.
1.
The switch for LDWS shall be ON. The LDWS lamp is on in the instrument panel when the switch is on.
2.
It operates when the LDWS function is set and beyond 70km/h (44mph) of vehicle speed.
The alarming function is stopped tentatively when the vehicle speed is lower than 65~70km/h (41~44mph) and the alarming is restarted when it is over 70km/h (44mph).
3.
It does not alarm when the left and right lamps are operated to inform the lane change.
The departure alarming function is restarted after 2 seconds from switching off the left and right direction lamps.
The lane departure alarming function is stopped when the emergency lamp is operated as well.
4.
Operate the switch for direction lamp and change the lane to change the lane. The random changing of the lane without operating the direction lamp to the driving direction generates the alarming.
5.
When more than 40% of the vehicle is crossed the lane, the alarming is released by sensing as departure for lane change.
6.
The lane departure alarming is not made when the vehicle drives at the center of the lane.

Use caution in the following conditions because the LDWS may not be operated normally.
-
When the lane is not so visible by the rain, snow, dust, puddle and other foreign materials
-
When the sight is unclear by the bad weather such as fog/heavy rain/heavy snow
-
When the solar beam, street lamp or the light from the approaching car are reflected on the wet surface of the road
-
When the brightness is changed abruptly by exiting from the tunnel
-
When the back light is illuminated strongly against the vehicle direction
-
When the headlamp is not use or the light beam is too weak in the night or inside the tunnel
-
When the lane is not distinctive and the road is damaged
-
When the shadow of median strip covers the lane
-
When the lane and road are not distinguished by the dusts on the lane
-
When there are more than 2 lanes to the left or right such as the exclusive road of the bus
-
In the winding road or steep road
-
When there are signs other than the lane near to the lane or similar sign (Ex: Arrow) with the lane
-
When there is a boundary structure such as the sidewalk block
-
When the windshield or LDWS camera lens are contaminated with the moisture or foreign material
-
When the distance to the front car is extremely short or the front car is driving by covering the lane
-
When the vehicle is extremely disturbed
-
In the section of diverging or converging lane or complicated crossing of the lane (Ex: Interchange and tollgate)
-
When the object is placed on the dashboard
-
Arrow on the road surface
-
When the lane is too narrow or too wide
-
When the color of the lane and road is not clear
-
When the temperature around the room mirror is very high by the direct sunlight
-
When the LDWS doest not sense the color of the lane by the surrounded lighting
(Ex: Inside the tunnel, the section of natrium lamps in the night and raining)
-
When the sight is bad enough not to sense the other lanes

-
This system does not operate when the vehicle speed is under 70km/h (44mph) or the lane marking is not sensed.
-
Do not get the windshield tinted and do not put the sticker or accessories around the room mirror.
-
Use caution for the LDWS not to be contacted with water.
-
Do not disassemble or impact on the LDWS parts randomly.
-
Do not place the reflective material (White paper or mirror) on the dashboard. The malfunctioning may be caused by the sunlight reflection.
-
The excessive noise may disturb the hearing of the LDWS alarming sound.
