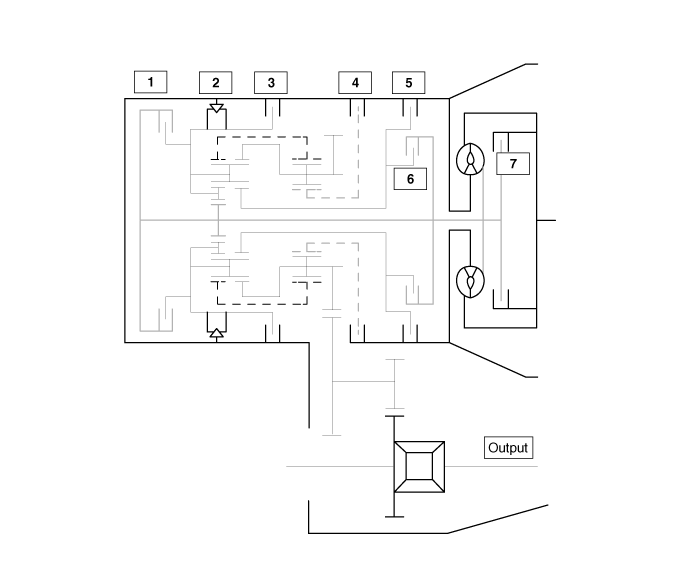

Components Location |
1. Overdrive clutch (OD/C) 2. One way clutch (OWC) 3. Low & Reverse brake (LR/B) 4. Underdrive brake (UD/B) | 5. 26 brake(26/B) 6. 35R clutch (35R/C) 7. Damper clutch (D/C) |
