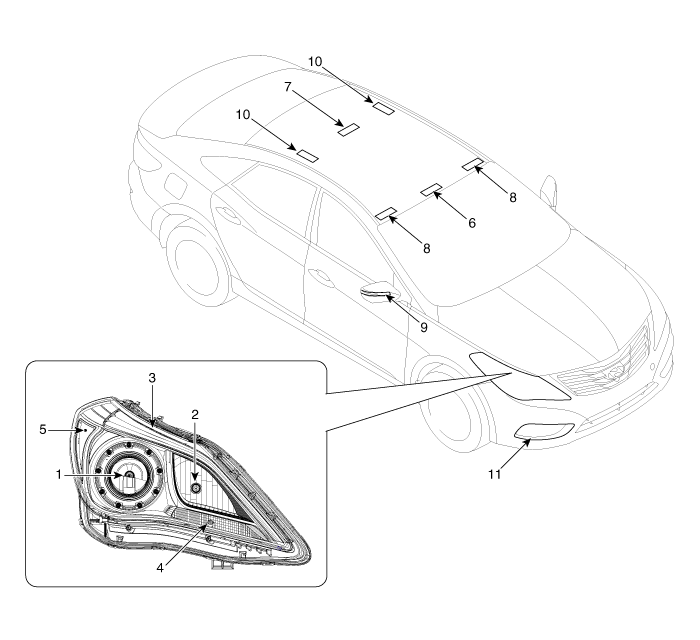

| Component Location (1) |
| 1. Head lamp (Low) 2. Head lamp (High) 3. Position lamp (LED) 4. Front turn signal lamp 5. Side marker 6. Overhead console lamp (General/Panoramaroof) | 7. Room lamp (General) 8. Vanity lamp 9. Door mirror turn signal lamp (LED) 10. Room lamp (Panorama roof) 11. Front fog lamp |

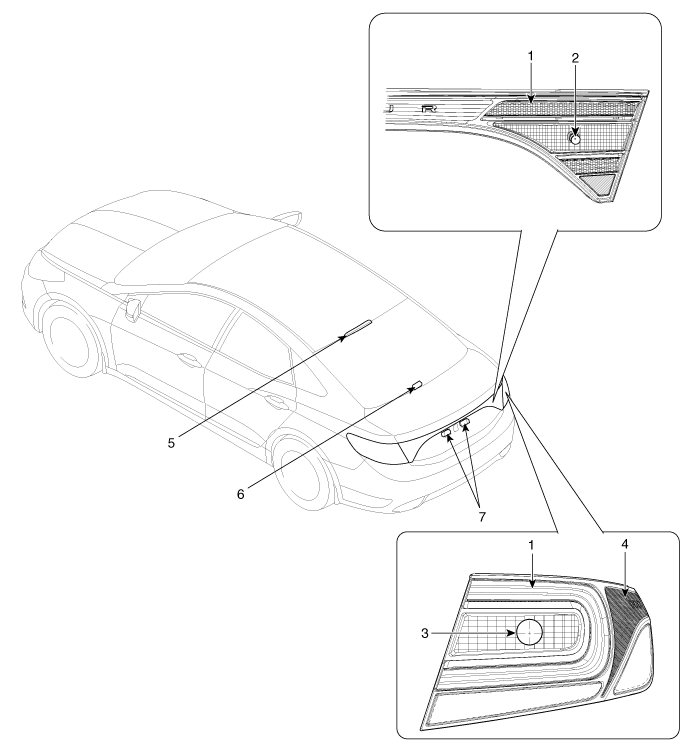

| Component Location (2) |
| 1. Tail/Stop lamp(Trunk side) 2. Back up lamp 3. Turn signal lamp 4. Side marker | 5. High mounted stop lamp 6. Luggage room lamp 7. Lisence lamp |
Specifications
Specification
ItemBulb Watt(W)TypeFrontHead lamp(High)55H7Head lamp(Low)55(General) /35(HID)H7/D1SPosition lampLEDLEDTurn signal lamp21HY21WFog lamp35H8Side markerLEDLEDRearStop lamp / Tail lampL ...
Head Lamps Components and Components Location
Component
1. Head lamp assembly & housing2. Dust cap3. Head lamp(Low) bulb4. Head lamp(High) bulb5. Turn signal lamp bulb
1. Head lamp assembly lens & housing2. Head lamp(High) bulb3 ...
