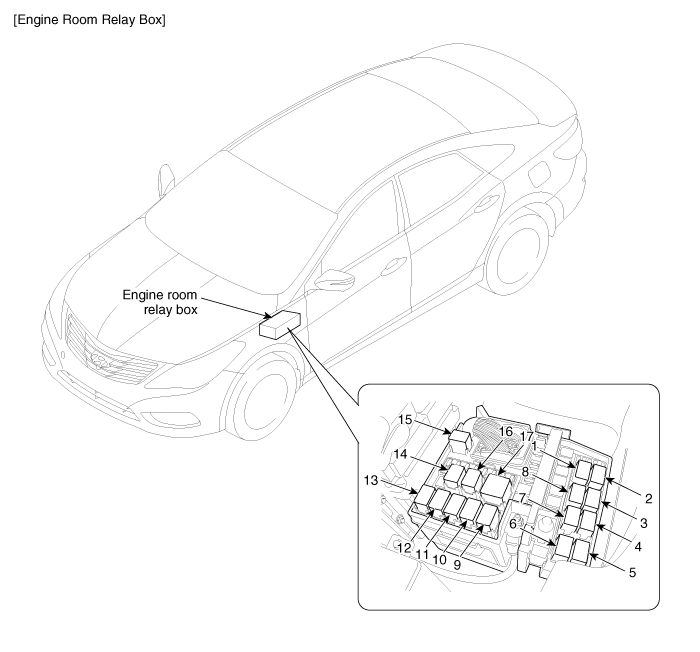

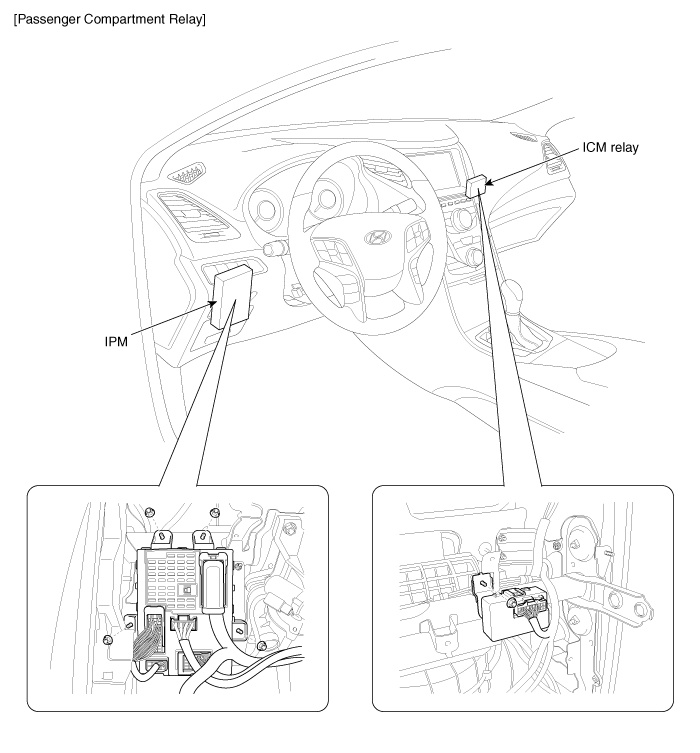

| Component Location |
| 1. Front deicer relay 2. Washer 3. Button Start 3(IG2) 4. Wiper(High) 5. Blower relay 6. Power outlet 7. Wiper(Low) 8. Button Start 2(IG1) 9. Stop lamp | 10. Start 11. Cooling fan(Low) 12. Cooling fan(High) 13. Button Start 1(ACC) 14. Fuel pump 15. Rear defogger relay 16. Horn relay 17. ECU relay |
