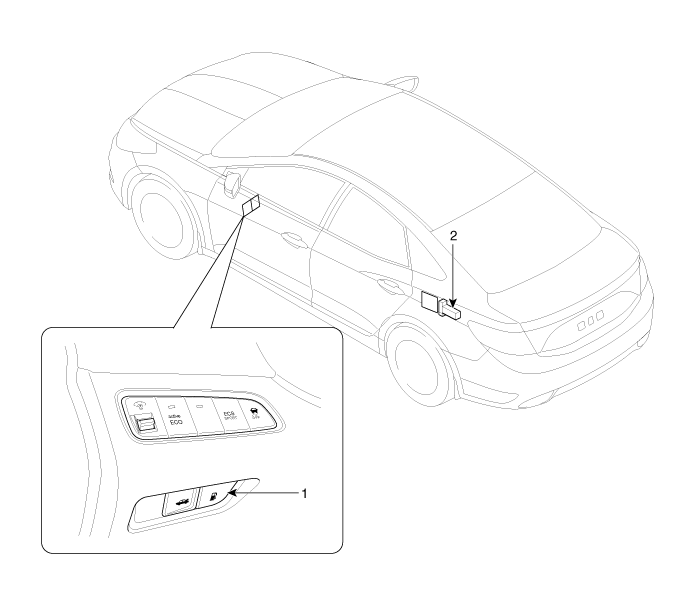

| Component Location |
| 1. Fuel filler door open switch | 2. Fuel filler door release actuator |
Fuel Filler Door
...
Fuel Filler Door Release Actuator Repair procedures
Inspection
1.
Open the fuel filler door and remove the fuel filler door release actuator (A) after loosening the mounting bolts.
2.
Remove the luggage side trim [LH].
(Refer to Body - "Trunk ...
