Hyundai Azera: Brake Pedal Components and Components Location
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Brake System / Brake System / Brake Pedal Components and Components Location
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Brake System / Brake System / Brake Pedal Components and Components Location

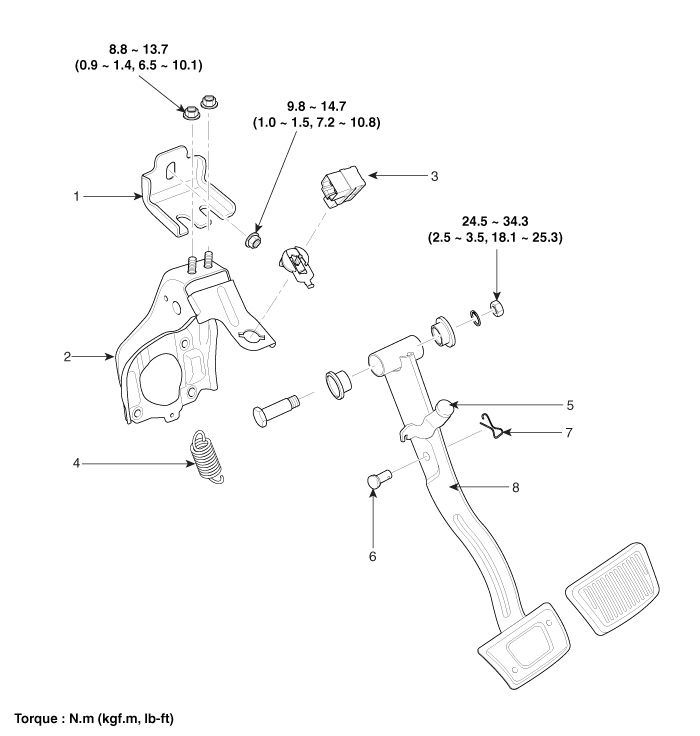

| Components |
| 1. Cowl bracket 2. Brake pedal member assembly 3. Stop lamp switch 4. Return spring | 5. Brake pedal stopper 6. Clevis pin 7. Snap pin 8. Brake pedal |
Brake Line Repair procedures
Removal
1.
Disconnect the brake fiuid level switch connector, and remove the reservoir cap.
2.
Remove the brake fluid from the master cylinder reservior with a syringe.
...
Brake Pedal Repair procedures
Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash pad lower panel")
3.
Remove the shower duct ...
