Hyundai Azera: Brake Booster Components and Components Location - Brake System - Brake System - Hyundai Azera 2011-2025 Service ManualHyundai Azera: Brake Booster Components and Components Location

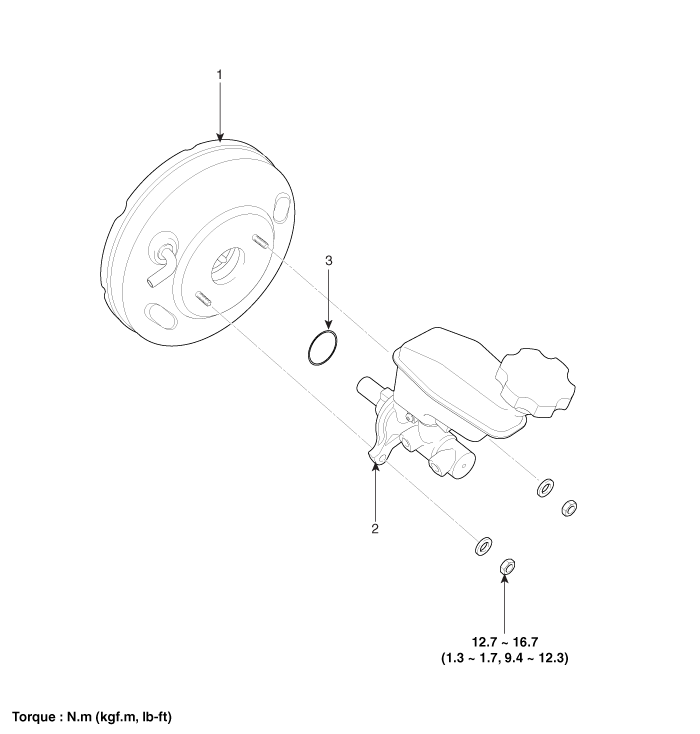

Components

1. Brake booster
2. Master cylinder assembly
3. O-ring

Repair procedures
Operation and Leakage Check Check all of the following items: ComponentProcedureBrake Booster (A)Check brake operation by applying the brakes during a test drive. If the brakes do not work prope ...

Brake Booster Repair procedures
Brake Booster Operating Test For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, and then stop it. If the pedal depress ...
