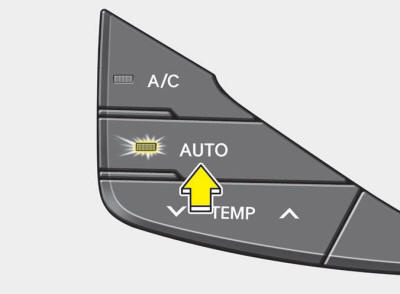

1. Push the AUTO button.
The modes, fan speeds, air intake and air-conditioning will be controlled automatically by setting the temperature.

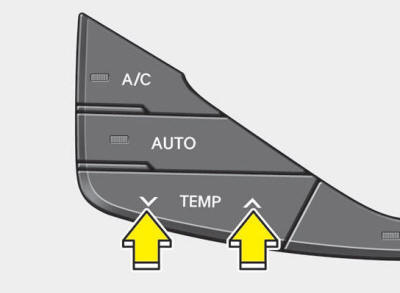

2. Set the temperature to the desired temperature.
✽ NOTICE
- To turn the automatic operation off, select any button or switch of the following: Mode selection switch Air conditioning button Front windshield defroster button Air intake control button Fan speed control knob The selected function will be controlled manually while other functions operate automatically.
- For your convenience and to improve the effectiveness of the climate control, use the AUTO button and set the temperature to 73°F (23°C).
Never place anything over the sensor located on the instrument panel to ensure better control of the heating and cooling system.
