Hyundai Azera: Automatic climate control system (Type B)
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Owners Manual / Features of your vehicle / Automatic climate control system (Type B)

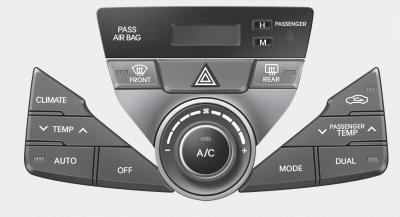

1. Front windshield defroster button
2. Fan speed control knob
3. OFF button
4. Rear window defroster button
5. Dual temperature control selection button
6. Mode selection button
7. Passenger's temperature control switch
8. Air intake control button
9. Climate information screen selection button
10. Driver’s temperature control switch
11. AUTO (automatic control) button
12. Air conditioning button
- Automatic heating and air conditioning
- Manual heating and air conditioning
- Climate control air filter
- Checking the amount of air conditioner refrigerant and compressor lubricant
Climate control air filter
The climate control air filter installed behind the glove box filters the dust
or other pollutants that come into the vehicle from the outside through the heating
and air conditioning system.
If ...
Automatic heating and air conditioning
1. Push the AUTO button.
The modes, fan speeds, air intake and air-conditioning will be controlled automatically
by setting the temperature.
2. Set the temperature to the desired temperatur ...
