Hyundai Azera: Variable Intake Solenoid (VIS) Valve Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Hyundai Azera 2011-2025 Service ManualHyundai Azera: Variable Intake Solenoid (VIS) Valve Schematic Diagrams

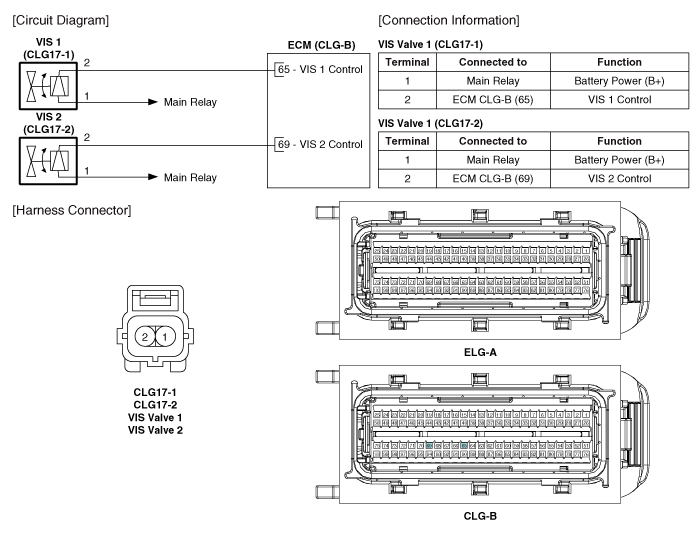

Circuit Diagram

Variable Intake Solenoid (VIS) Valve Specifications
Specification ItemSpecificationCoil Resistance (?)30.0 ~ 35.0 [20°C(68°F)] ...

Variable Intake Solenoid (VIS) Valve Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the VIS valve connector. 3. Measure resistance between the VIS valve terminals 1 and 2. 4. Check that the resistance is within ...
